GES Lighting Track System

1 CIRCUIT

1 NEUTRAL

The Power Behind the Fixture.

Architectural grade | ISO 9001 quality | JIT availability | Open architecture - ready for your fixtures now

High quality, UL listed 1-cct/1-neutral lighting track system, 120V
Low profile, easy & flexible installation
Open architecture — ready for your fixtures now!

Global GES 1-cct/1-neutral is engineered to be a durable, dependable and simple-to-install lighting solution. The track’s extruded aluminum construction and continuously crimped conductor ensure mechanical strength and electrical reliability. The integral suspension rail and predrilled mounting holes of the track simplify the installation process.

GES Lighting Track System

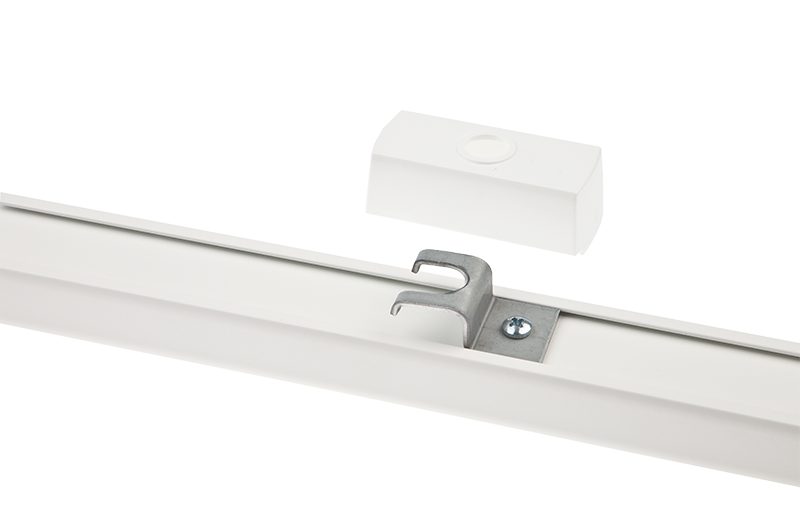

Suspension Hardware Rail

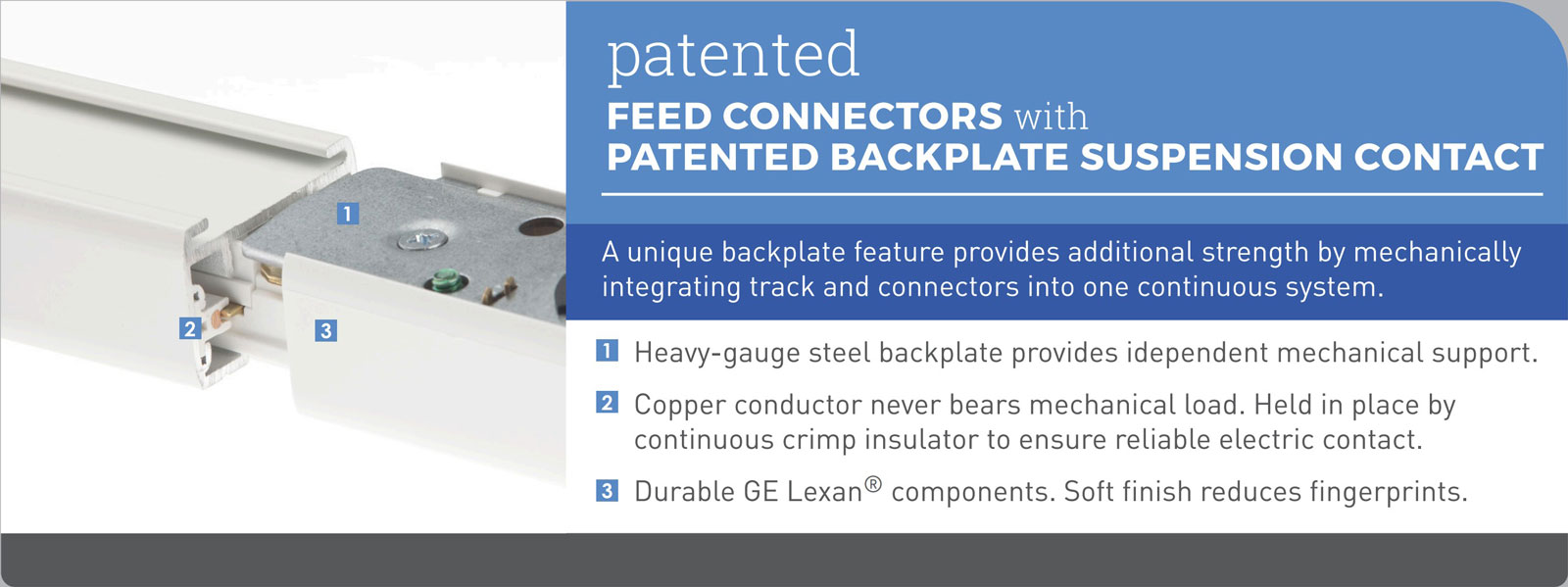

Provides fastening point for suspension hardware, also serves as an attachment point for the unique, load-bearing metal backplate featured on eco feeds and connectors, ensuring a secure connection.
Milled Grounding Bar
Provides continuous ground contact for fixtures anywhere along the track run.
Alignment Groove
Provides easy centering for screws.

Bus Bar Installation
Conductor and insulation assembly is crimped continuously into place along the track profile, and is guaranteed not to slip for the life of the product, regardless of whether or not the track has been field cut

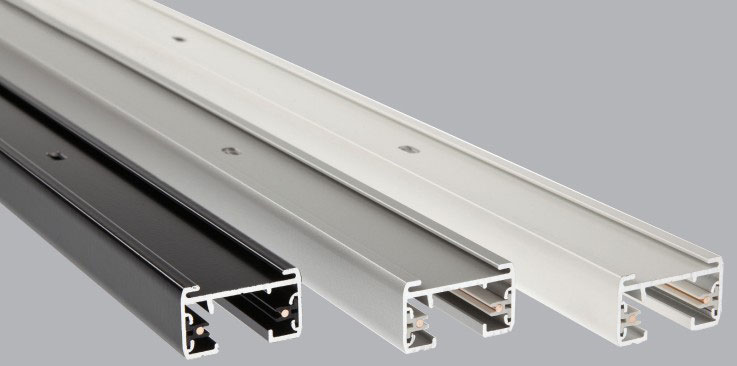

Extruded Channel
Constructed of strong, extruded aluminum. Impervious to corrosion.
Predrilled Mounting Holes
For installation convenience. Tracks ship from the factory with predrilled mounting holes spaced per UL and NEC guidelines.

GES Track Components

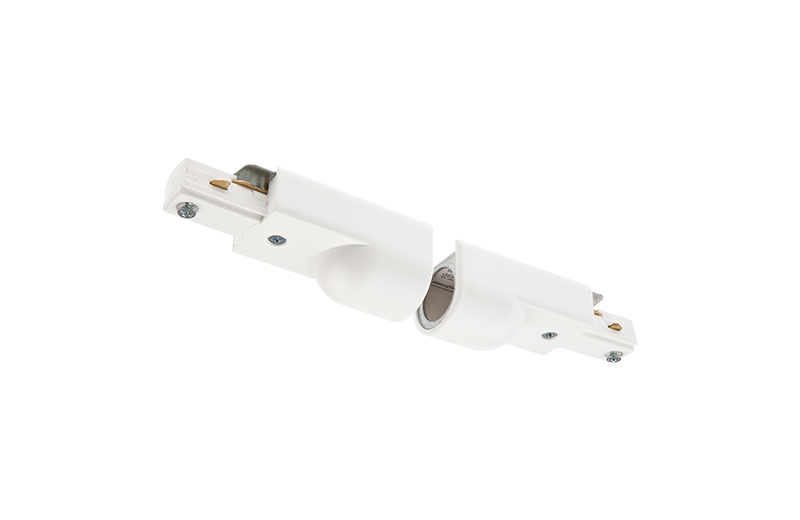

Conduit Cont. Kit

Jumpers track runs around obstacles.
GES 13 & GES 16 (-1, -2, -3)

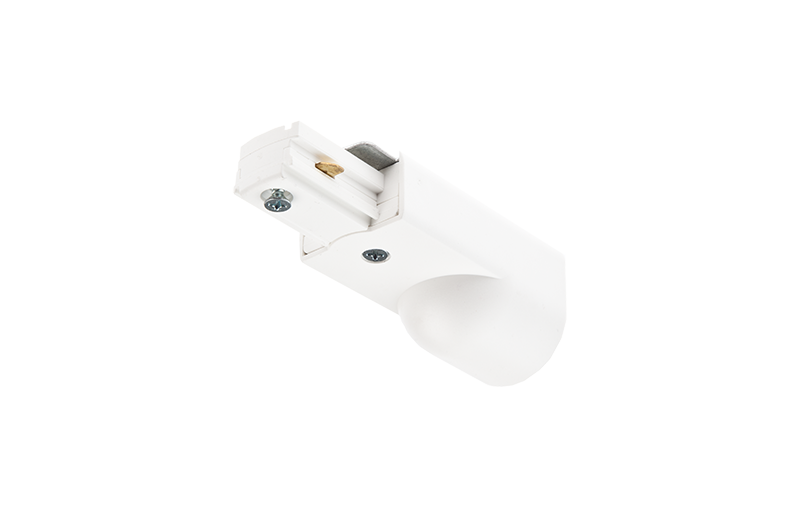

Conduit End Feed

GES 13 (-1, -2, -3)

Current Limiting Device

(Circuit breaker provided by others)
GES 11CB (-1, -2, -3)
GES 14CB (-1, -2, -3)

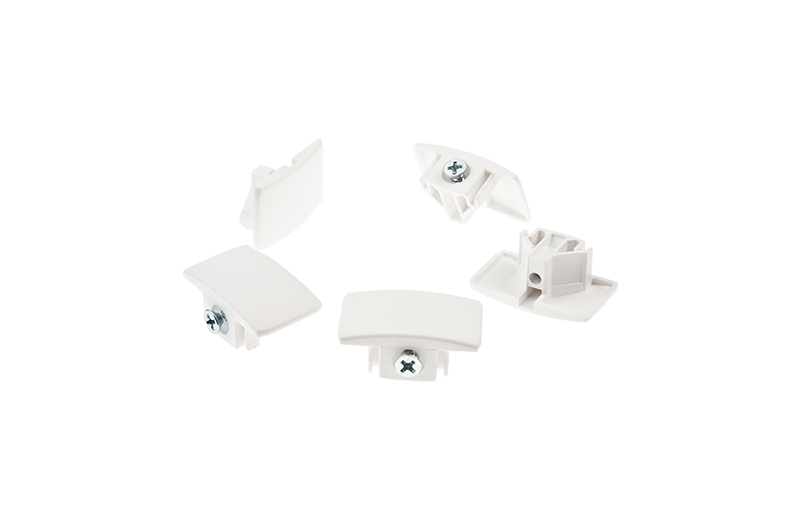

Dead Ends

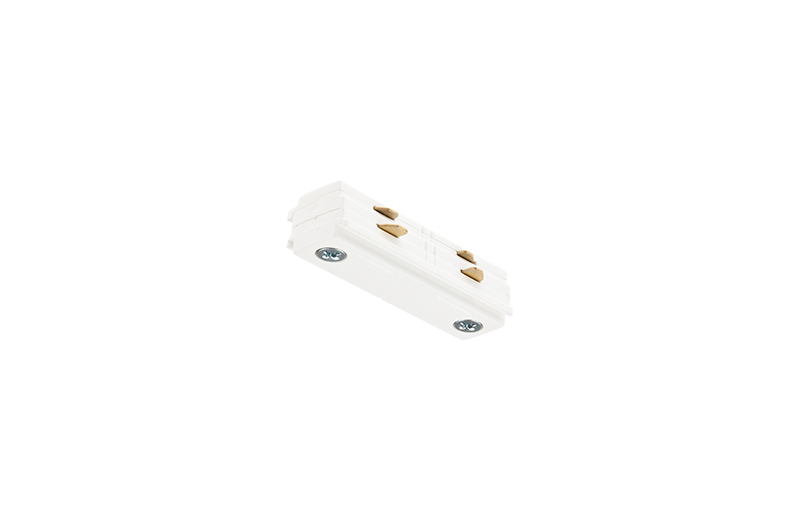

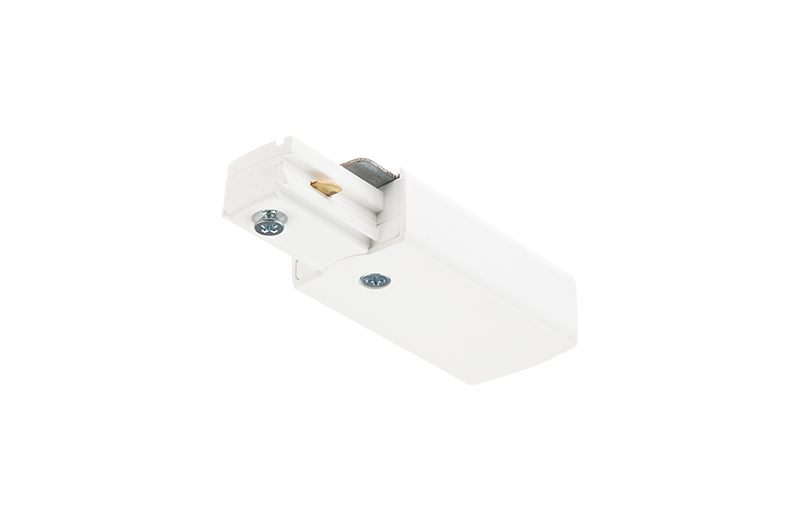

Included with live end feeds, conduit feeds, linear

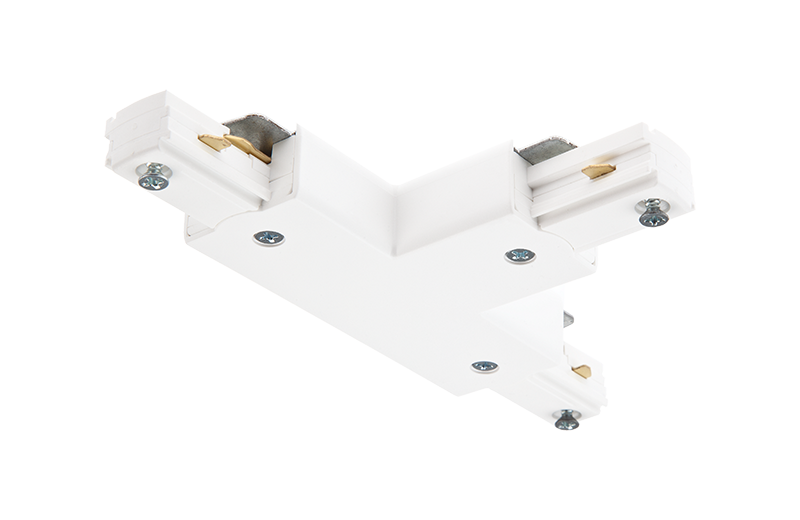

couplers, straight feed connectors, and L, T, & X
feed connectors. Also sold separately.
GES 41 (-1, -2, -3)
