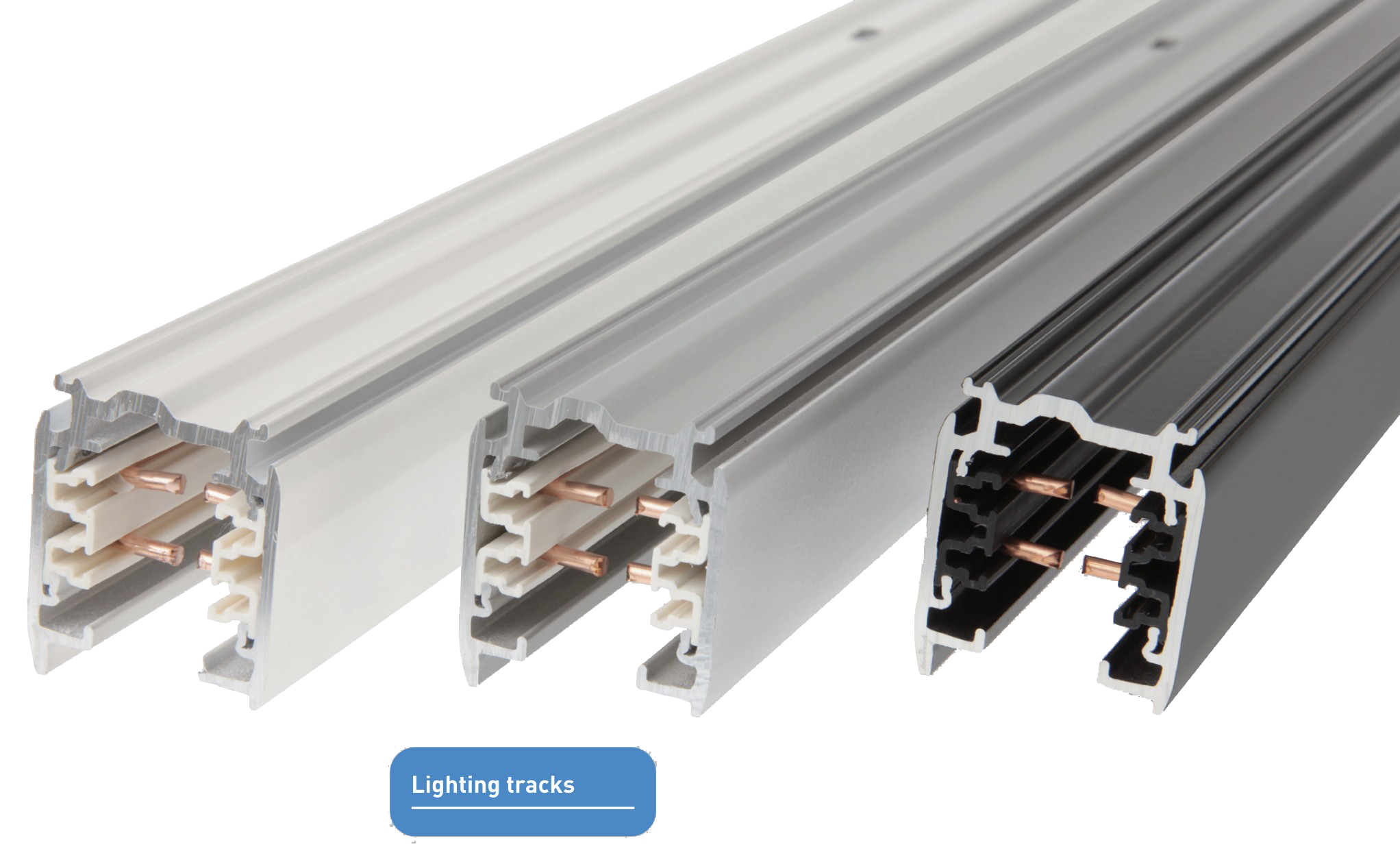

HTEK Lighting Track System
The Power Behind the Fixture.
Architectural grade | ISO 9001 quality | JIT availability | Open architecture - ready for your fixtures now
- High quality, UL listed 2-cct/2-neutral lighting track system, 277V
- Over twice the capacity of standard 120V track (5,540W/cct vs. 2,400W cct)
- Allows longer track runs with more fixtures
- Reduced installation costs: fewer feed points, fewer home runs, no need for step down transformers.
- Ideal for your designed track fixtures
Global HTEK 2-cct/2-neutral 277V lighting track is well-suited for larger retail and institutional applications where a large number of fixtures will be used. The HTEK system offers twice the capacity of ordinary 120V track allowing for substantially longer runs with more fixtures between feedpoints. This translates into enhanced aesthetics and reduced installation costs. Fewer feedpoints mean fewer costly home runs to the panel box. The isolated neutrals mean that cross-circuit interference and neutral harmonics are completely eliminated, ensuring superior fixture performance and life. Independent neutrals also offer twice the power handling capacity of ordinary common neutral track.
GLOBAL HTEK lighting track is engineered to be a durable, dependable and simple-to-install lighting solution. Extruded aluminum construction and continuously crimped conductors ensure superior mechanical strength and electrical reliability. An integral suspension rail and predrilled mounting holes of the track simplify installations.


HTEK Lighting Track System

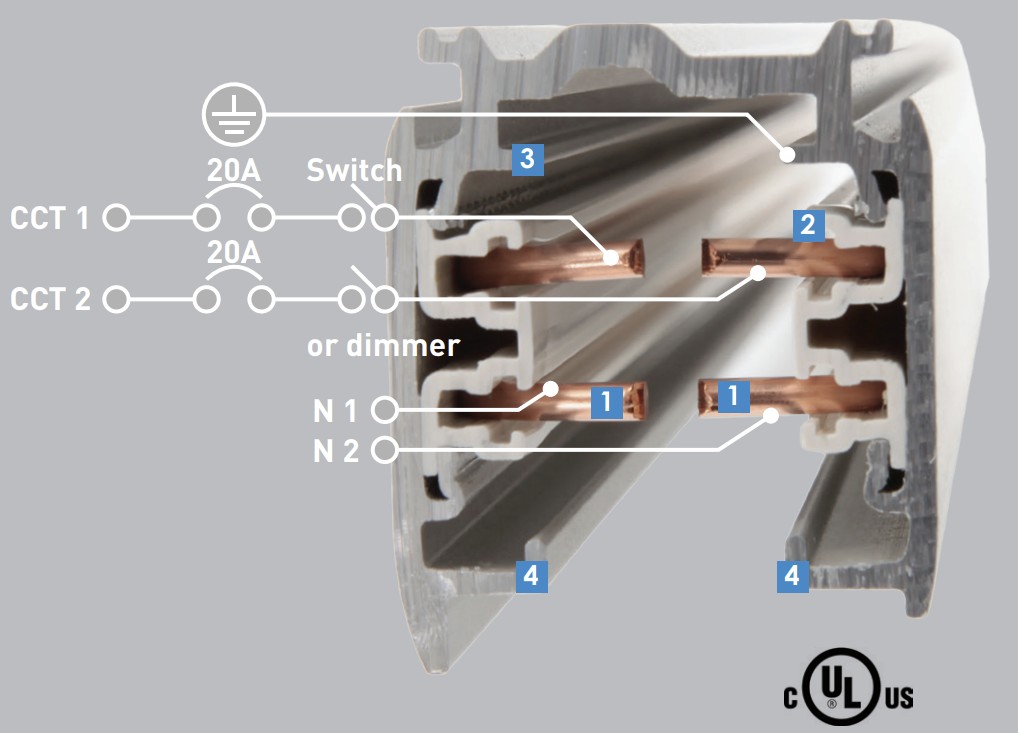

- Independent Neutrals
Enable greater power capacity (2x20A); Dimming capability-dim on two independent circuits without harmonics or interference on the neutral conductor
- Oversized Conductors
For higher operating safety and reduced overload potential
- Secure Bus Bar Insulation
Firmly crimped insulation secures both conductors and insulation for the life of the product.
- Separate Mechanical Suspension Points
Provides superior weight bearing capacity; ensures electrical contact integrity and reduces likelihood of arcing.
- Polarity Ridge
Takes the guesswork out of connector and track alignment during installation.
HTEK Track Components

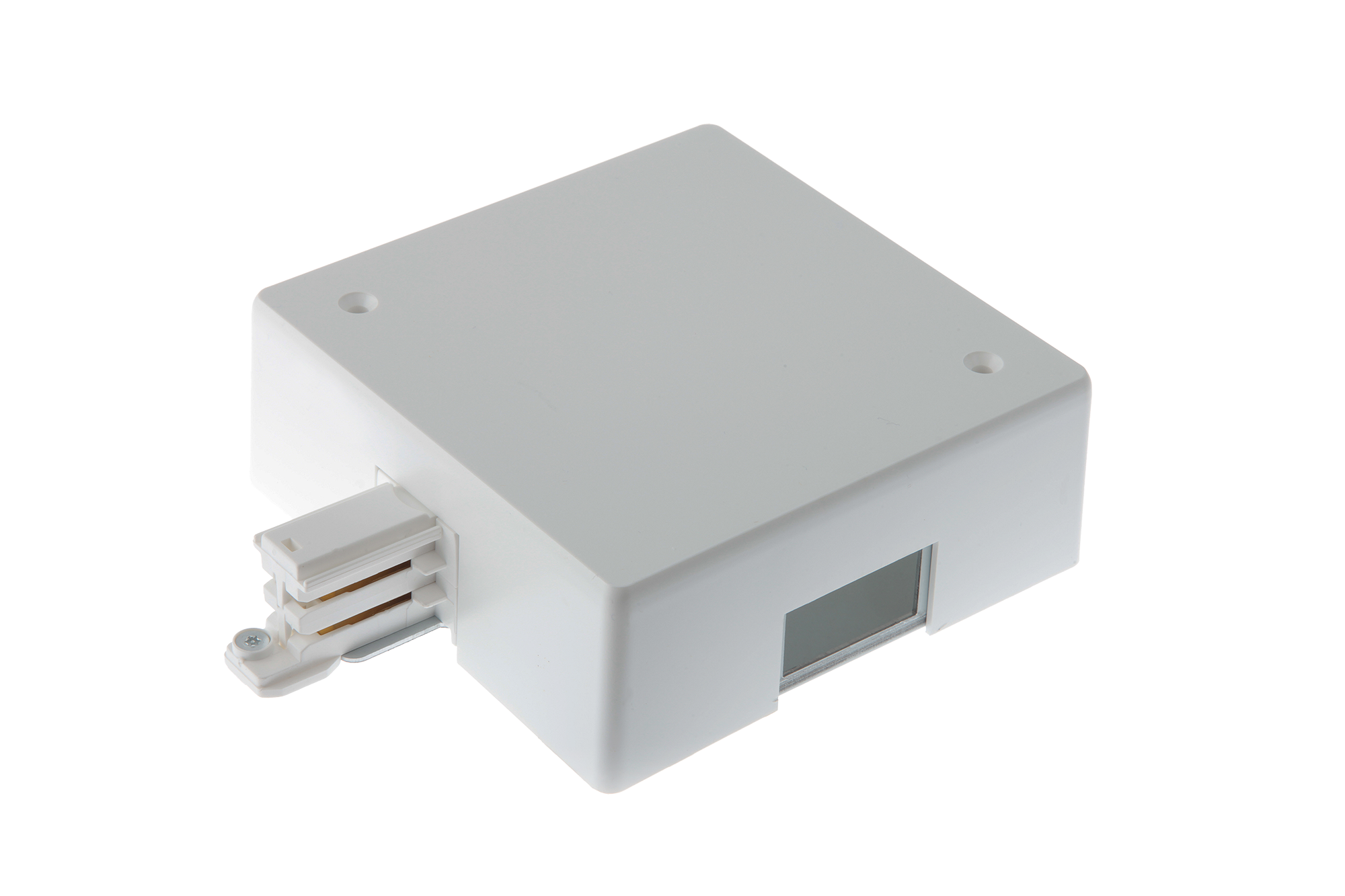

Current Limiting Device
Must be ordered separately
HTEK 11CB (-1, -2, -3)
HTEK 12CB (-1, -2, -3) Mirror Image

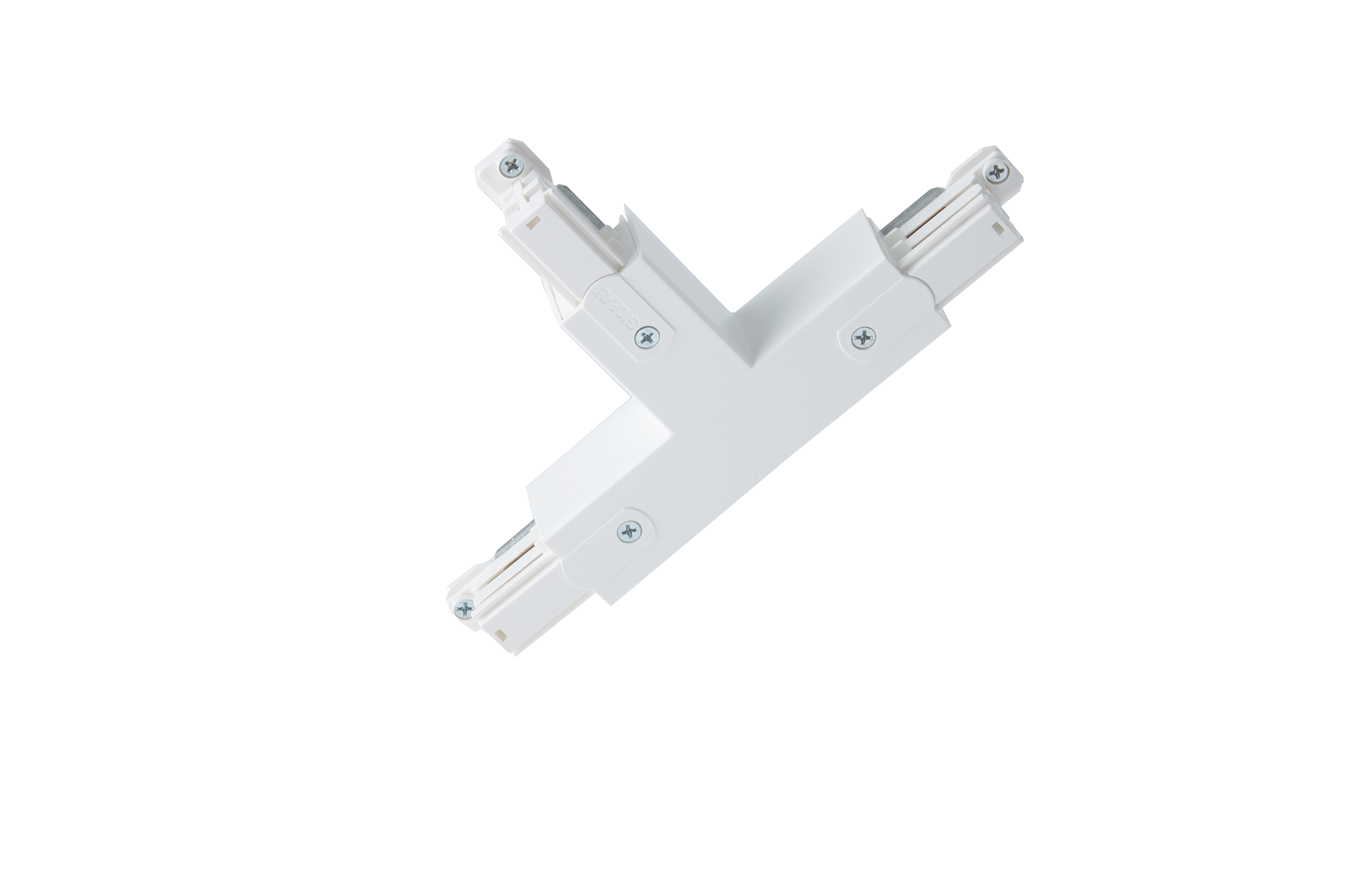

Feedable T-Connector
HTEK 39 (-1, -2, -3) Adjustable Right Polarity
HTEK 40 (-1, -2, -3) Adjustable Left Polarity
Mounting / Suspension
End Feed Stem Suspension Point
Includes bracket & cover. (Stem not included)
SP4E (-2, -3) Also available: specify
SP4L, SP4T, or SP4X for L, T, or X configurations
New Suspension Kits for HTEK Track Family
Track Mounting Clip for M6 and 1/4" - 20 UNC Rod
Recessed T Grid Clip SKBX 12 (-2, -3)
Standard T Grid Clip SKBT 12 (-2, -3)
Standard Track Clip SKB 12 (-1, -2, -3)
Standard Track Clip SKB 10 (-1, -2, -3)
