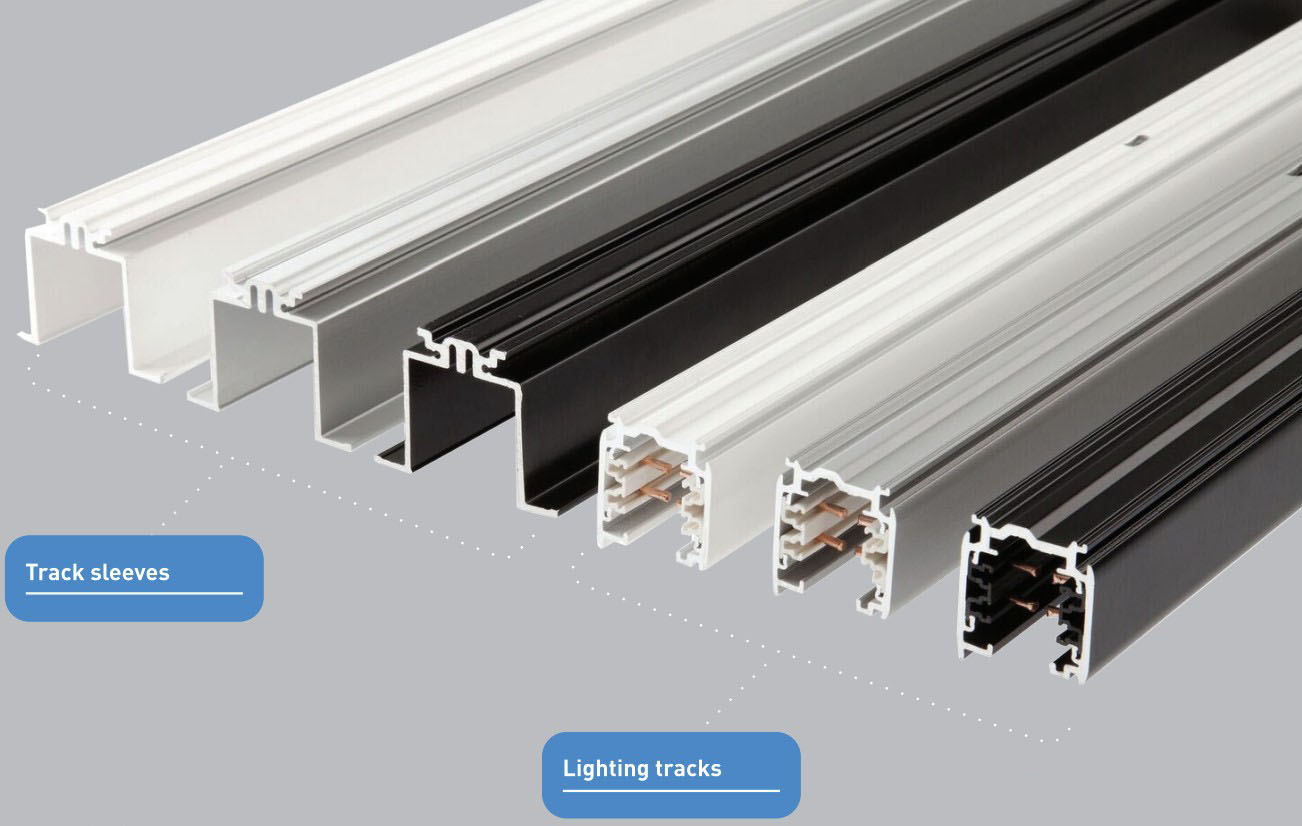

TEK Lighting Track System

2 CIRCUIT
2 NEUTRAL

The Power Behind the Fixture.

Architectural grade | ISO 9001 quality | JIT availability | Open architecture - ready for your fixtures now

  • High quality, UL listed 2-cct/2-neutral lighting track systems, 120V
  • Low profile, easy & flexible installation
  • Open architecture — ready for your fixtures now!

Superior performance for dimmed lighting, low life-cycle
cost, and high power handling capability make Global track
TEK lighting an excellent choice.

Global TEK 2-cct/2-neutral track is ideal for dimming
intensive applications. The independent neutrals guarantee
that the two circuits are completely isolated. Cross-circuit
interference and neutral harmonics are completely
eliminated, essential for trouble free dimming. The lack of
harmonics ensures superior fixture performance and
longer equipment life. Independent neutrals also offer
twice the power handling capacity of ordinary common
neutral track.

Global TEK track is engineered to be durable, dependable,
and simple-to-install lighting solution. The track’s
extruded aluminum construction and continuously crimped
conducter ensure mechanical strength and electrical
reliabilty. The integral suspension rail and predrilled
mounting holes of the track simplify installations.

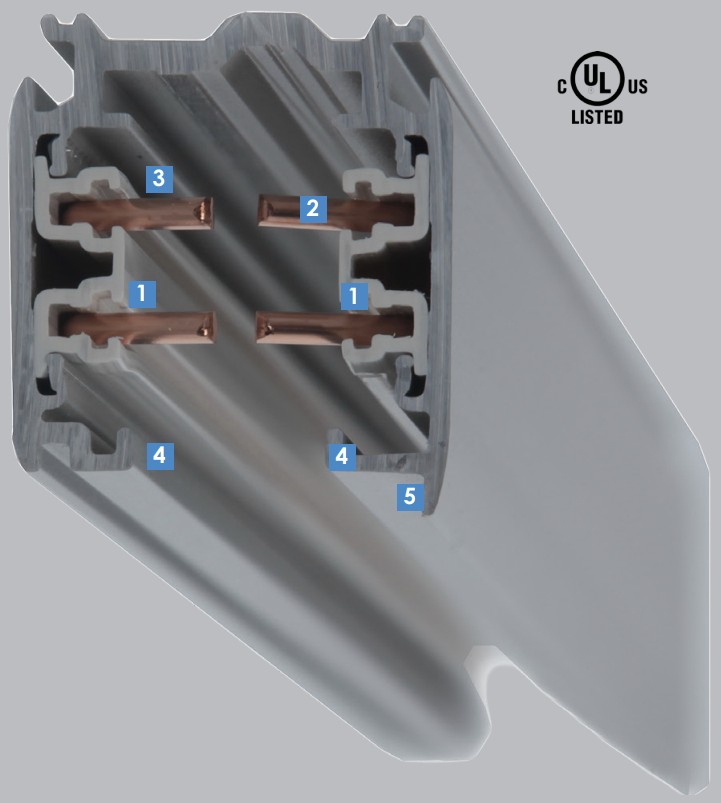

TEK Lighting Track System

  1. Independent Neutrals
    Enable greater power capacity (2 x 20A); Dimming capability - dim on two independent circuits without harmonics or interference on the neutral conductor.
  2. Oversized Conductors
    For higher operating safety and reduced overload potential.
  3. Secure Bus Bar Insulation
    Firmly crimped insulation secures both conductors and insulation for the life of the product.
  4. Separate Mechanical Suspension Points
    Provides superior weight bearing capacity; ensures electrical contact integrity and reduces likelihood of arcing.
  5. Polarity Ridge
    Takes the guesswork out of connector and track alignment during installation.

TEK Track Components

Adjustable Connector

TEK 24 (-1, -2, -3)

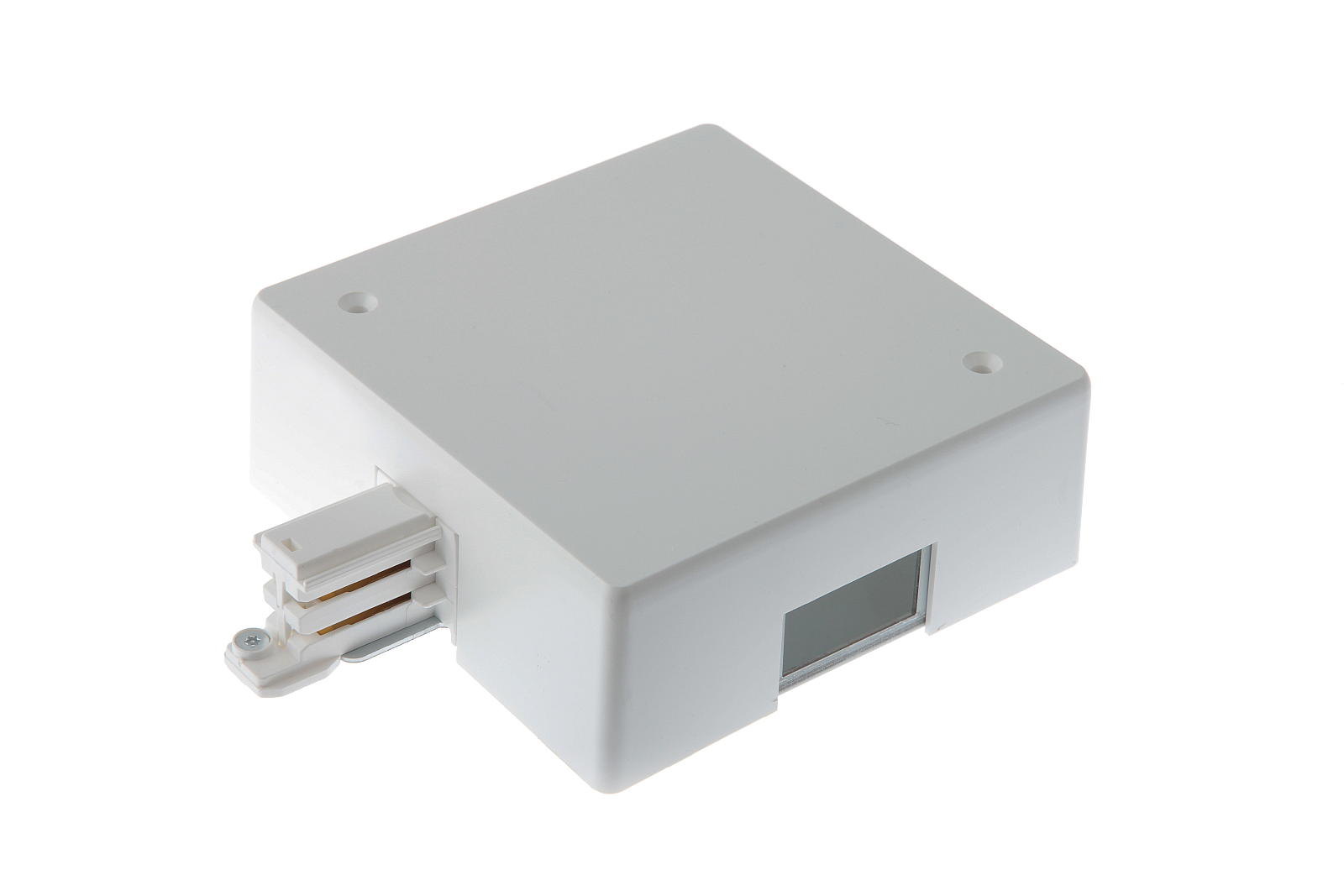

Current Limiting Device

TEK 11CB (-1, -2, -3)
TEK 12CB (-1, -2, -3)

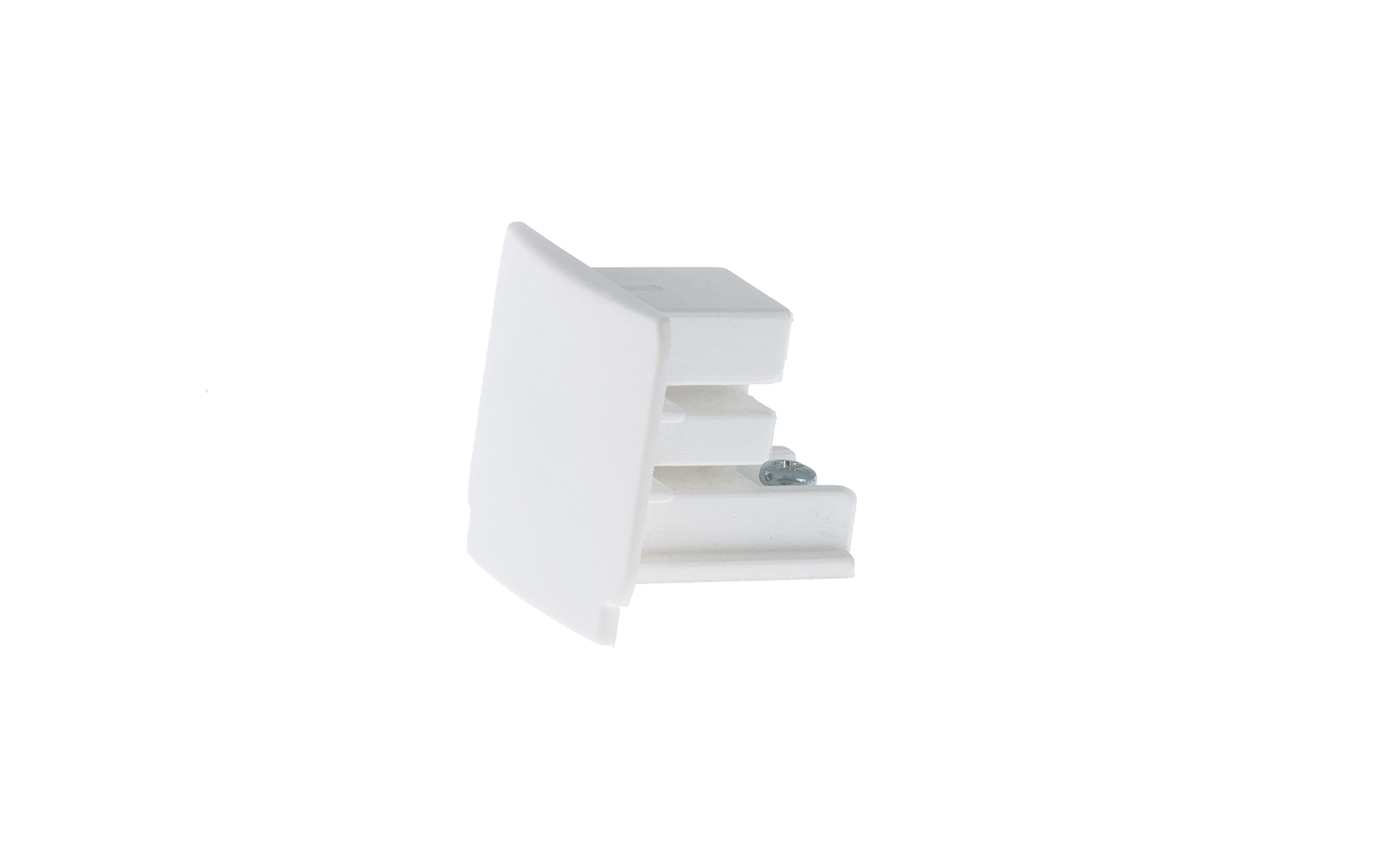

Dead Ends

Must be ordered separately.
TEK 41 (-1, -2, -3)

Feedable L Connector

Adjustable polarity. TEK 34 (-1, -2, -3)

Feedable T Connector

Adjustable right polarity. TEK 39 (-1, -2, -3)
Adjustable left polarity. TEK 40 (-1, -2, -3)

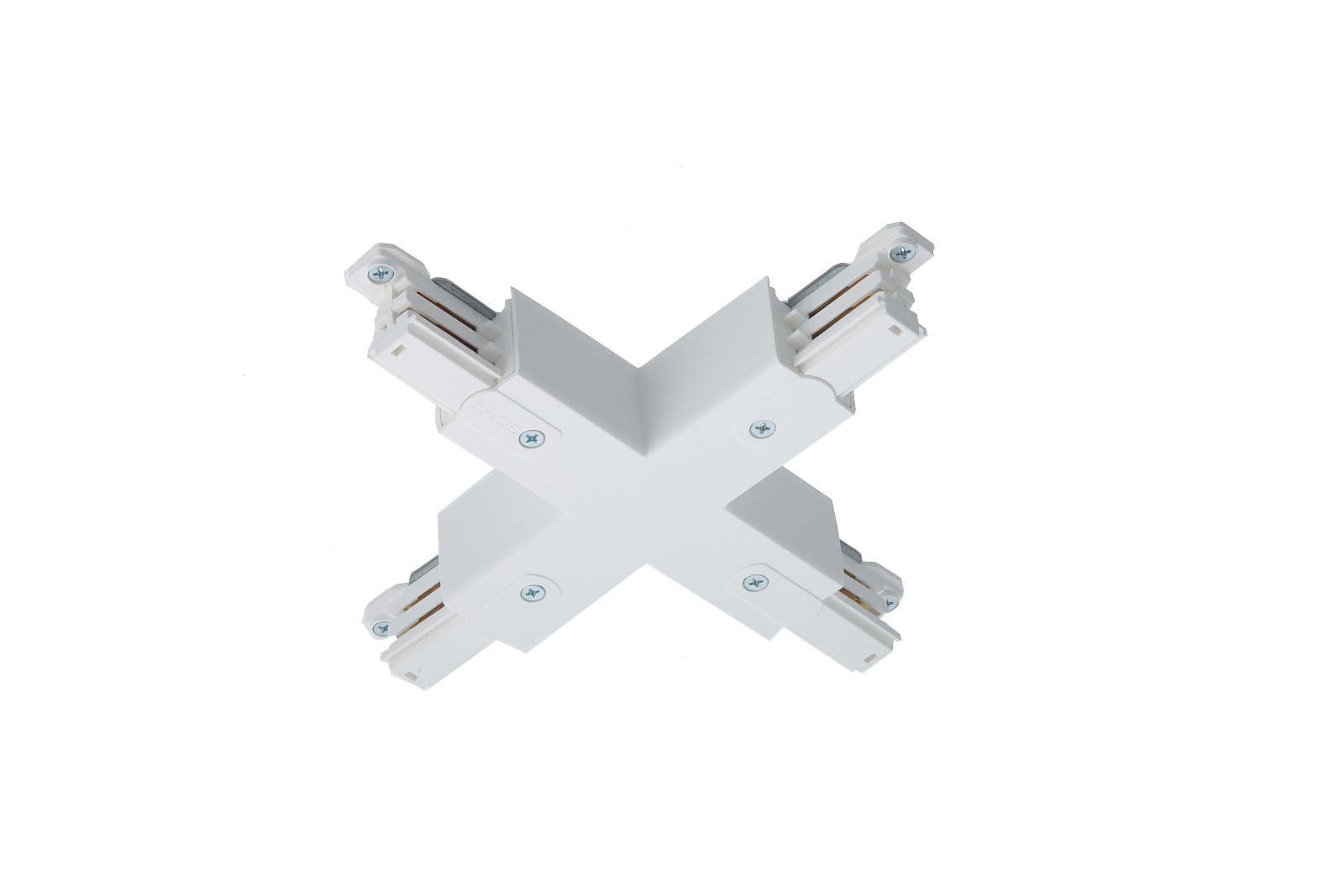

Feedable X Connector

TEK 38 (-1, -2, -3)

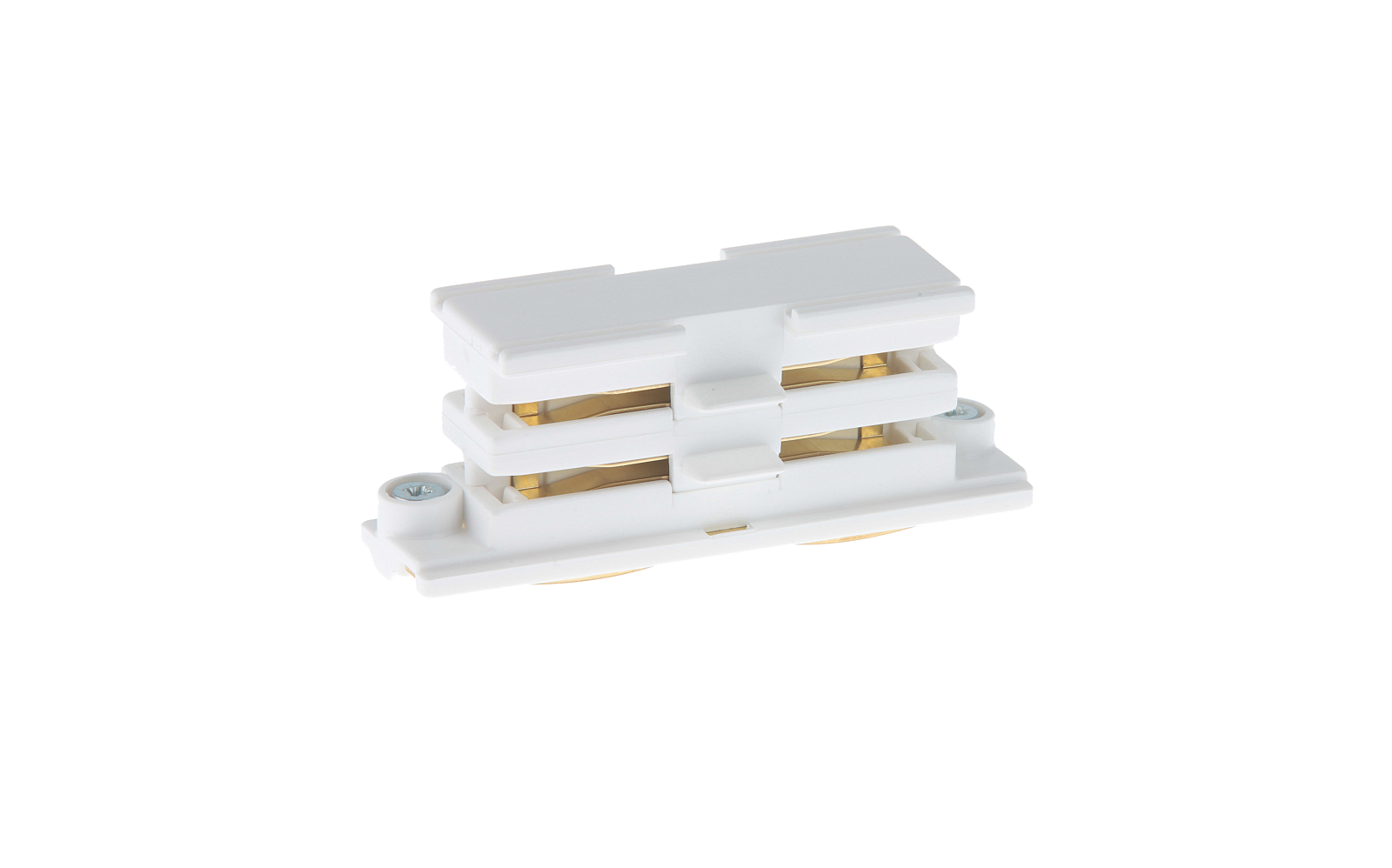

Linear Coupler

TEK 21 (-1, -2, -3)

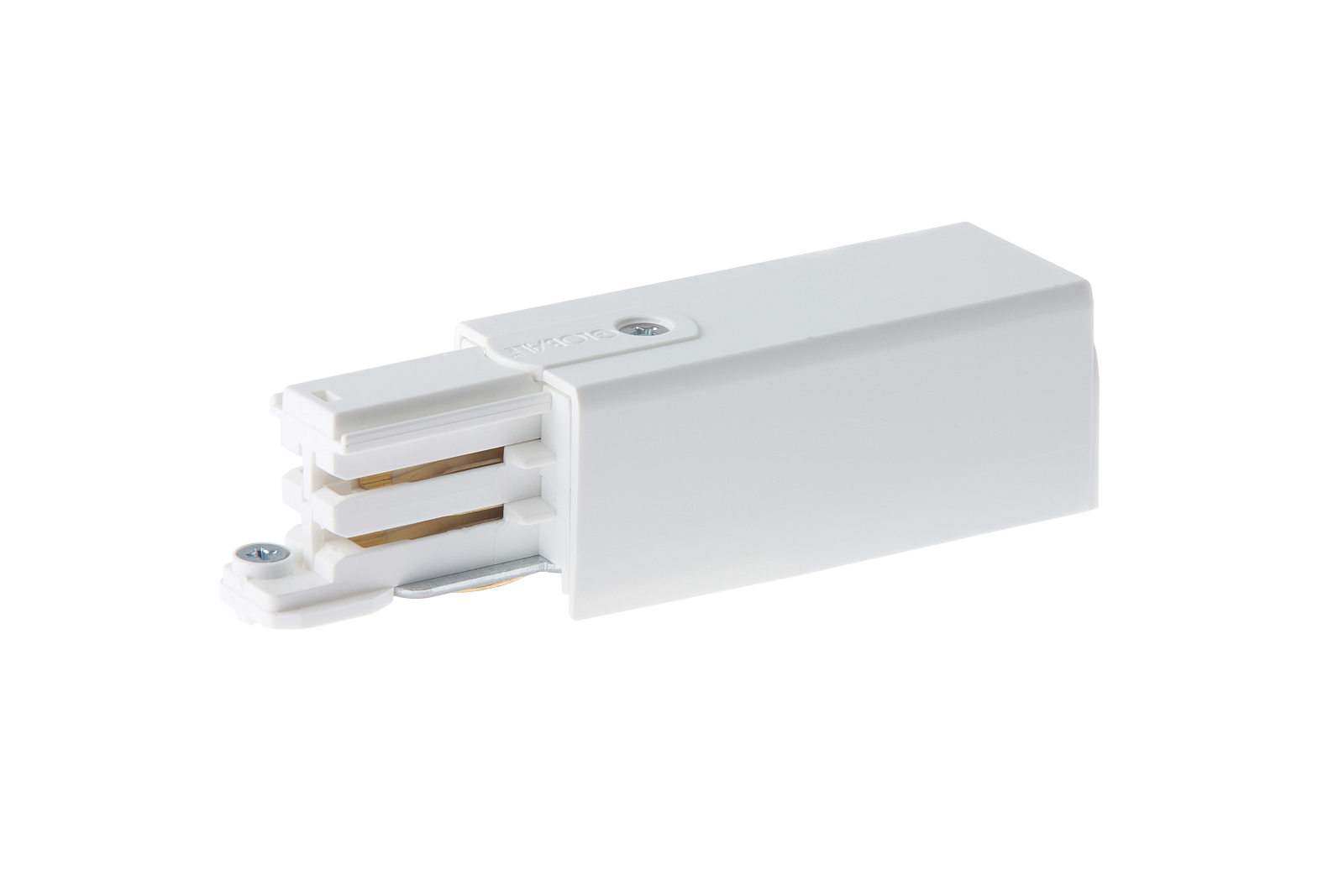

Live End Feed

TEK 11 (-1, -2, -3)
Mirror image, TEK 12 (-1, 2, -3)

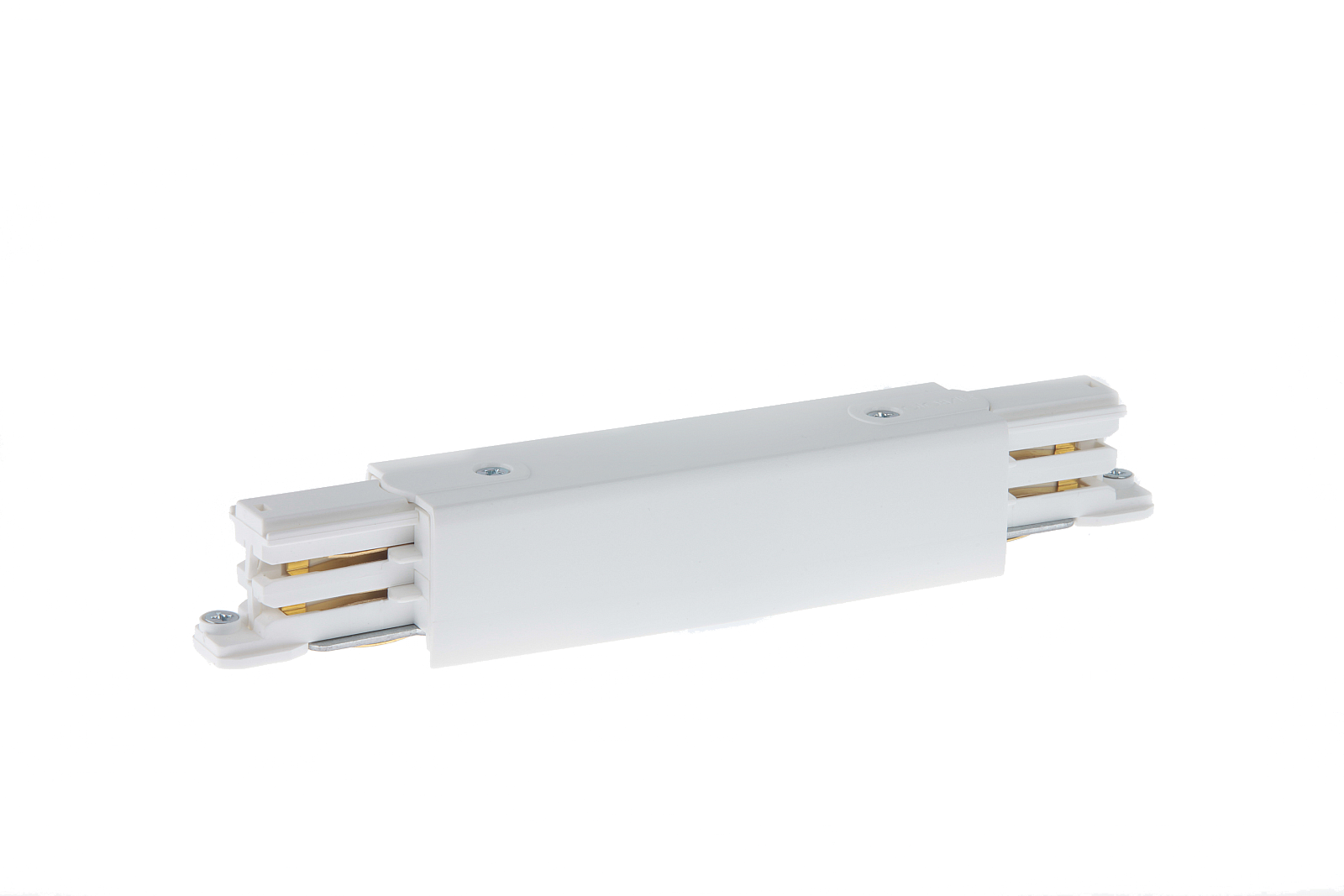

Live Middle Feed

TEK 14 (-1, -2, -3)

Outlet Box Cover

For use with any eco connector.
GES 15 (-1, -2, -3)

Track Length & Field Cutting Tool

All-in-one hand tool bends conductors to
manufacturer specifications and includes gauge
to verify correct length.
XTSV 12

Mounting / Suspension

Adapter

Includes bracket & cover.
(Stem not included) SP4P (-2, -3)

Cable Mount

End Feed Stem Suspension Point

Includes bracket & cover. (Stem not included)
SP4E (-2, -3) Also available: specify
SP4L, SP4T, or SP4X for L, T, or X configurations

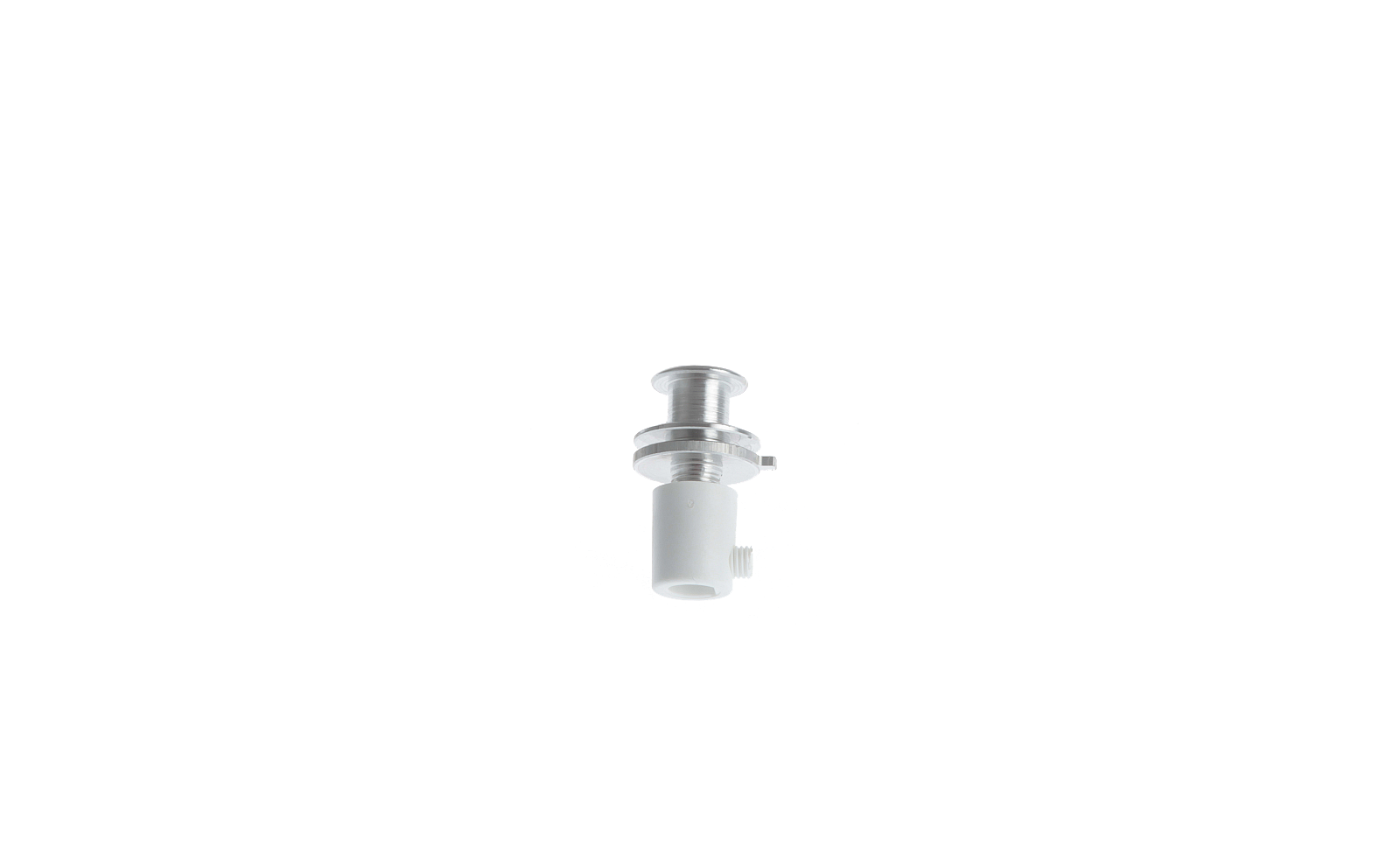

Nipple Rotating

HTEK 61-8/9 (8mm) or
HTEK 61-12/9 (12mm)

Stem Kits

Threaded Rod Mount

Universal Stem Suspension Point

Includes bracket & cover.
(Stem not included) SP4P (-2, -3)

New Suspension Kits for TEK Track Family

Extended Suspension Bracket

For looped aircraft cable
SKB 18 (-1, -2, -3)

Suspension Bracket

For looped aircraft cable
SKB 16 (-1, -2, -3)

Track Mounting Clip for DIA 1.5mm Wire

SKB 11WL (-1, -2, -3)
Fmax 150N

Track Mounting Clip for M6 and 1/4" - 20 UNC Rod

Recessed T Grid Clip SKBX 12 (-2, -3)
Standard T Grid Clip SKBT 12 (-2, -3)
Standard Track Clip SKB 12 (-1, -2, -3)
Standard Track Clip SKB 10 (-1, -2, -3)

Track Mounting Clips

Recessed T Grid Clip SKBX 12 (-2, -3)
Standard T Grid Clip SKBT 12 (-2, -3)
Standard Track Clip SKB 12 (-1, -2, -3)
Standard Track Clip SKB 10 (-1, -2, -3)
