XTS Lighting Track System
The Power Behind the Fixture.
Architectural grade | ISO 9001 quality | JIT availability | Open architecture - ready for your fixtures now
- High quality, UL listed 3-cct/1-neutral lighting track systems, 120V
- Low profile, easy & flexible installation
- Open architecture — ready for your fixtures now!
Superior performance for dimmed lighting, low life-cycle cost, and high power handling capability make Global track XTS lighting an excellent choice.
Global XTS track by NORDIC ALUMINIUM provides a specification grade track platform for mounting high quality fixtures. The heavy duty extruded aluminum profile is ideal for demanding applications where numerous and/or heavy fixtures are needed. In addition to U.L., Nordic lighting track is approved in numerous countries around the world, a valuable feature for both domestic and international projects. Produced in an ISO 9001 registered factory, the product has a long-standing reputation for arriving at the job site on-time and defect-free.
When the ultimate level of control is required, Global XTS 3-cct track provides the solution. Three circuits offer endless merchandising and ambiance creation opportunities. Certain fixtures can be dimmed or shut-off while others can be set to intensely illuminate objects. Attention can be drawn to certain products or exhibits, a desired effect can be created through multiple-circuit dimming, or all fixtures can be powered for maximum illumination. Maximum control and reduced energy costs make Global XTS an excellent choice.


XTS Lighting Track System




- 3-Circuit Control
- Energy savings-certain lights can be dimmed or shut-off while others illminate products
- Enhanced merchandising-attention can be focused on select products
- Quality Construction
- ISO 9001

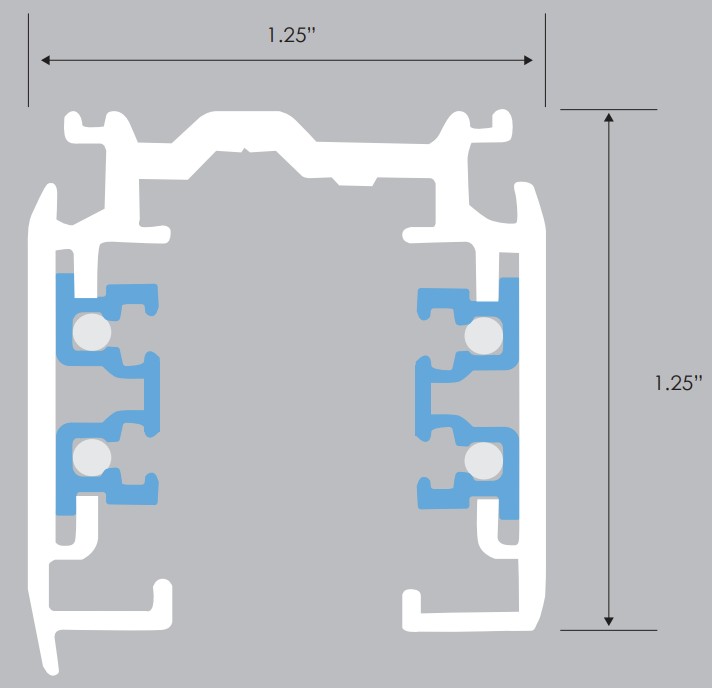

- Rigid aluminum profile
- High quality powder coat finish
- Custom colors available
- Curved track available

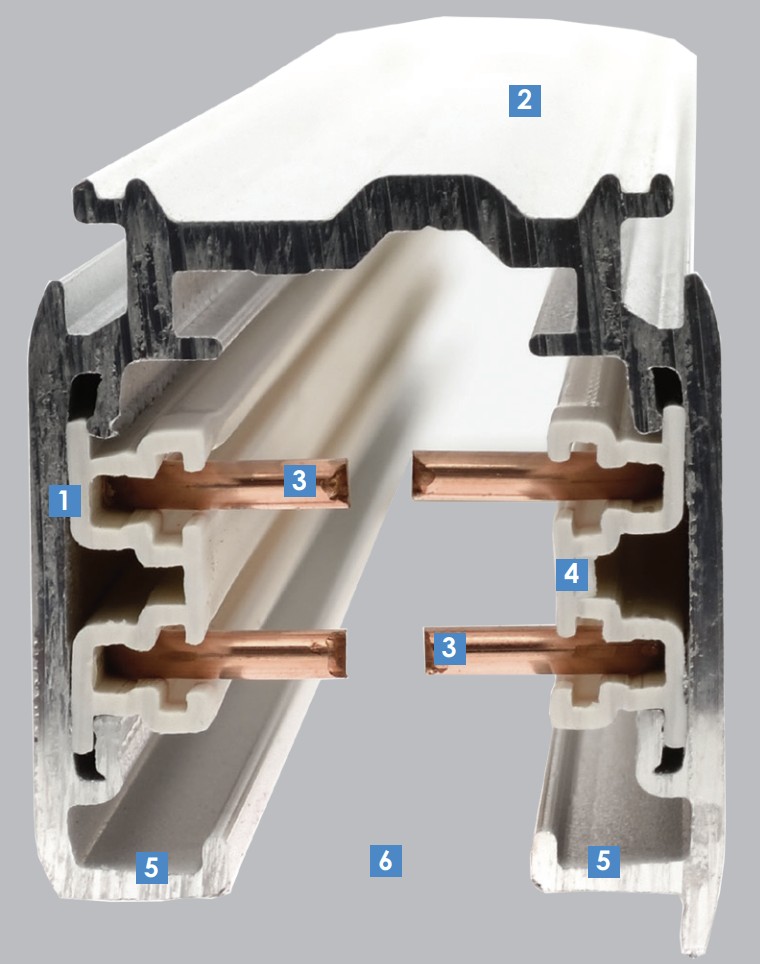

- Oversized Conductors
- Higher operating safety
- Reduced overload potential
- Secure Bus Bar Insulation
- Insulation is firmly crimped in place to prevent movement of the conductors or the insulation for the life of product
- Separate Mechanical Suspension Points
- Superior weight bearing capacity
- Integrity of electrical contacts is maintained, preventing arcing and extending the life of fixtures and lamps
- Open Architecture
- Widely available throughout the world, the Global track system accommodates an extensive variety of fixtures without risk of obsolescence
- Simplified Installation
- Surface mounting with easy to use mounting clips or direct mounting to ceiling through pre-drilled screw holes

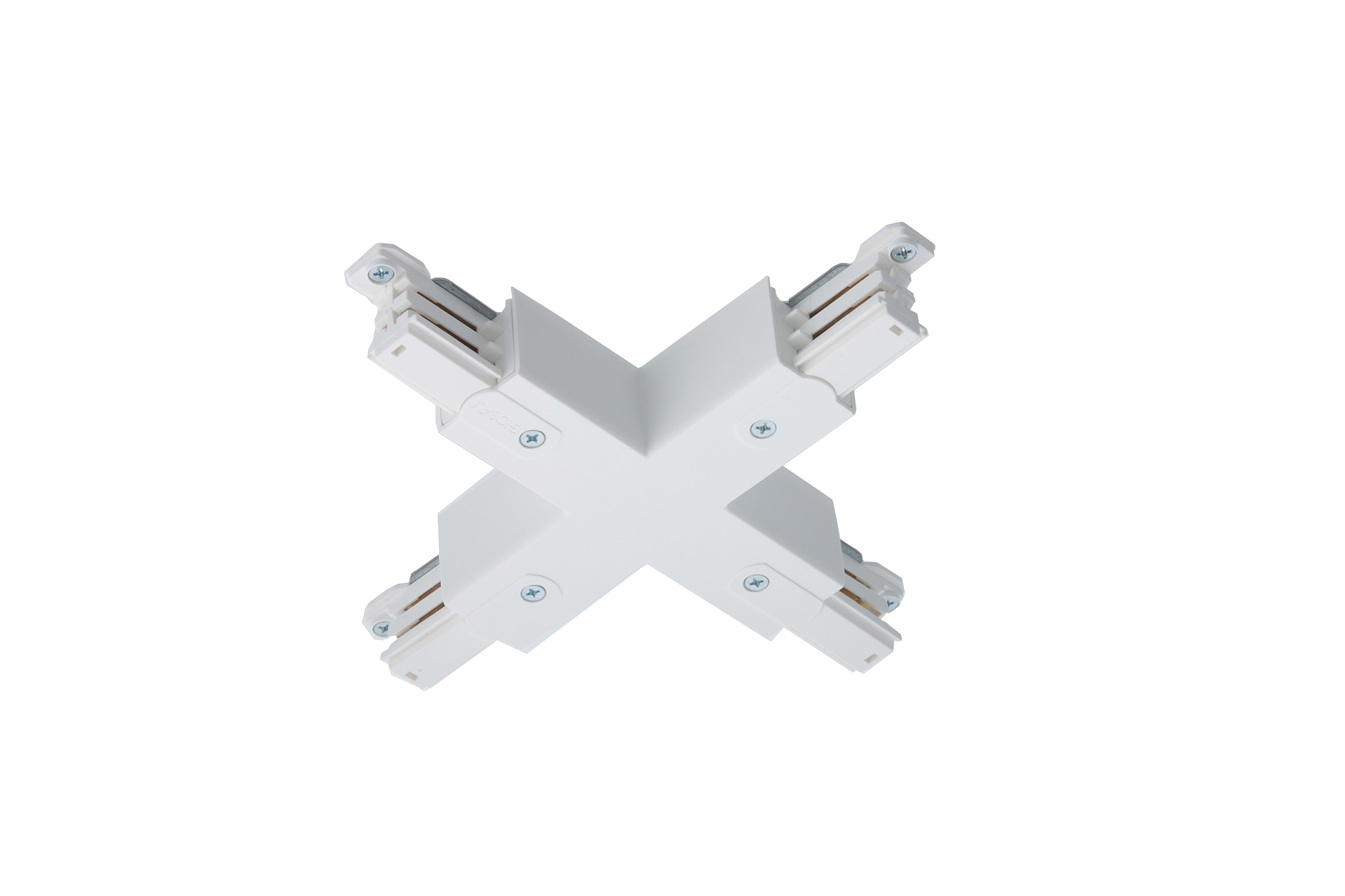

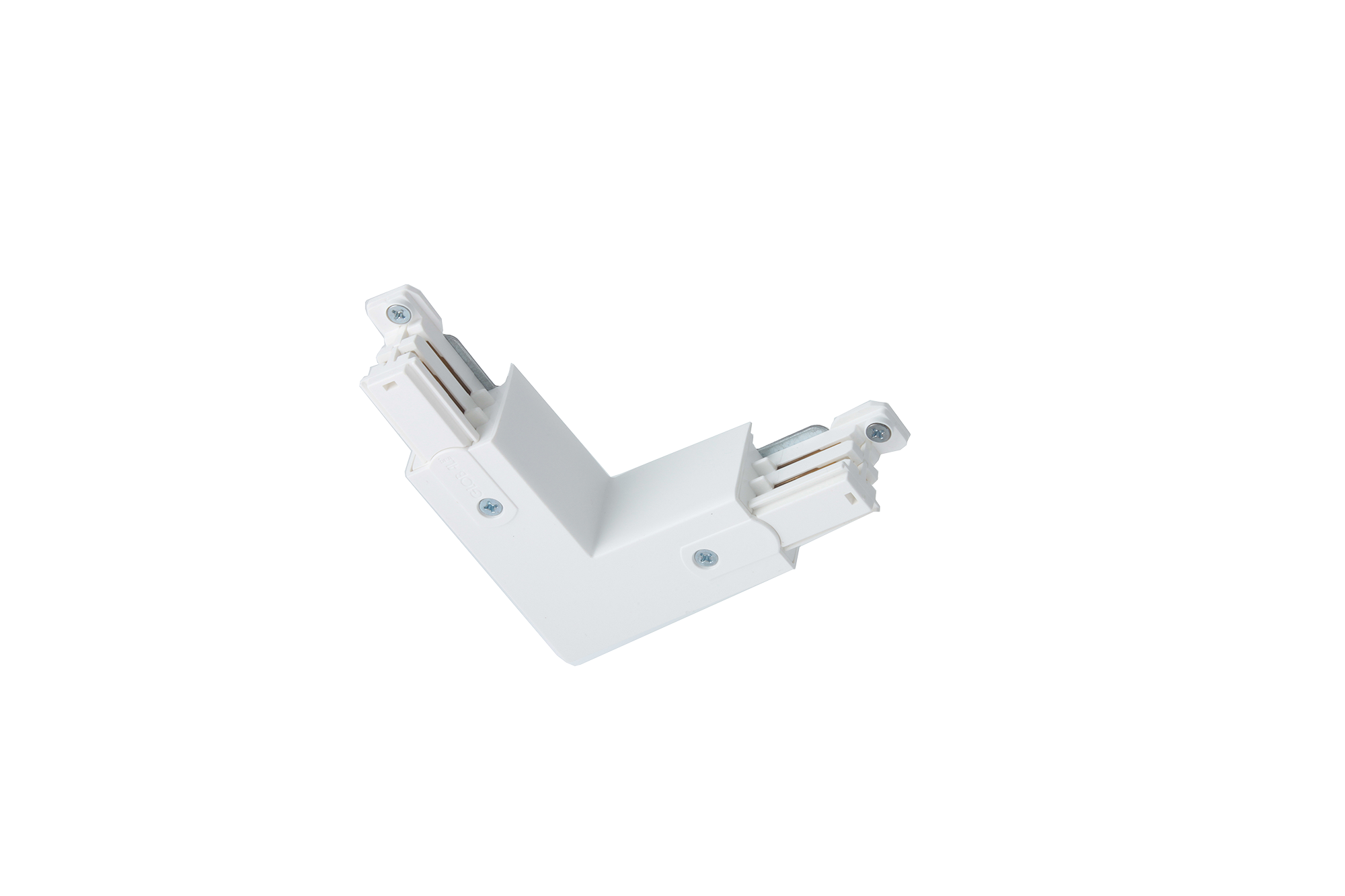

- Feedable L,T and X-connectors simplify installation
XTS Track Components

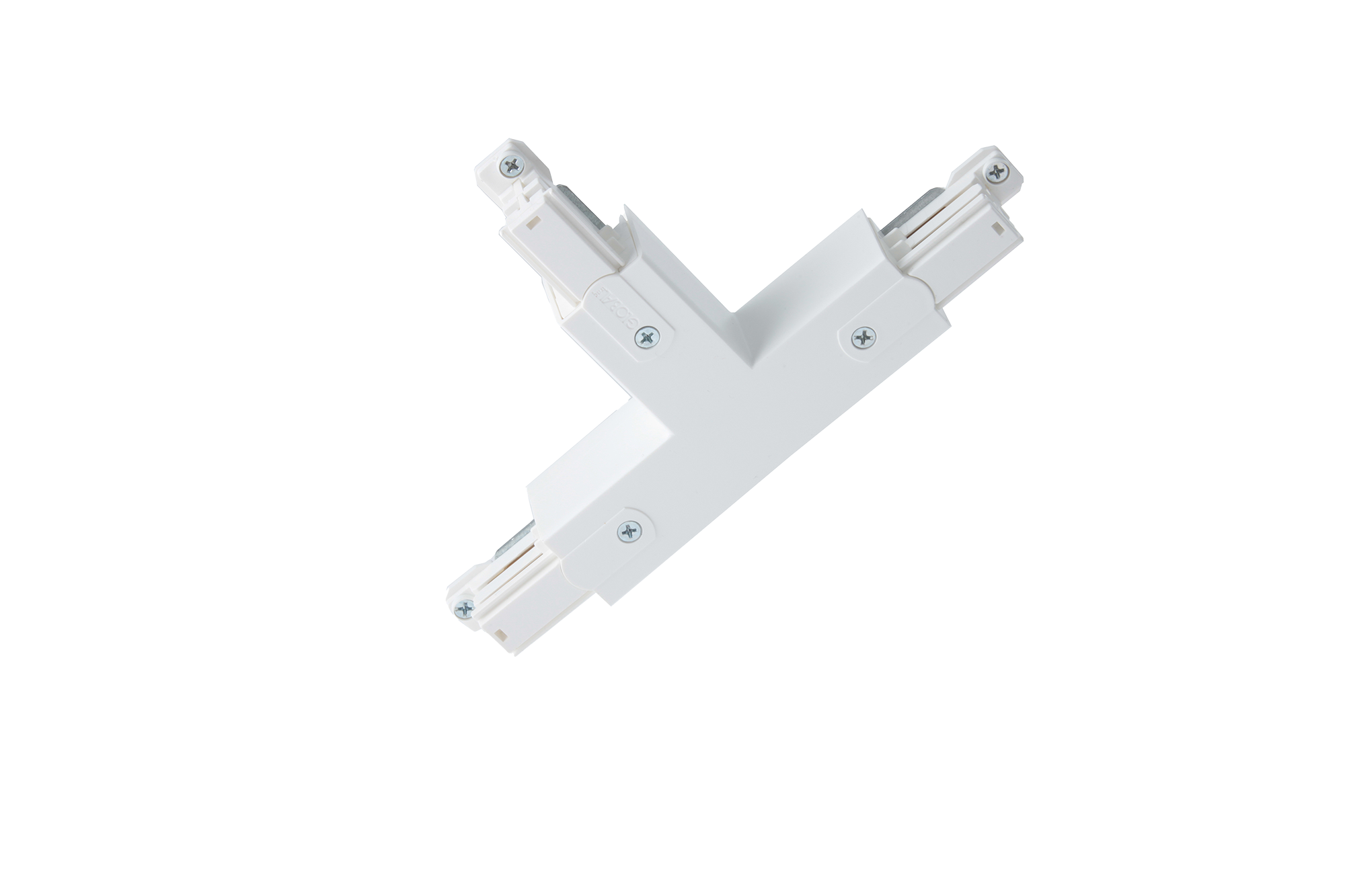

Feedable T Connector

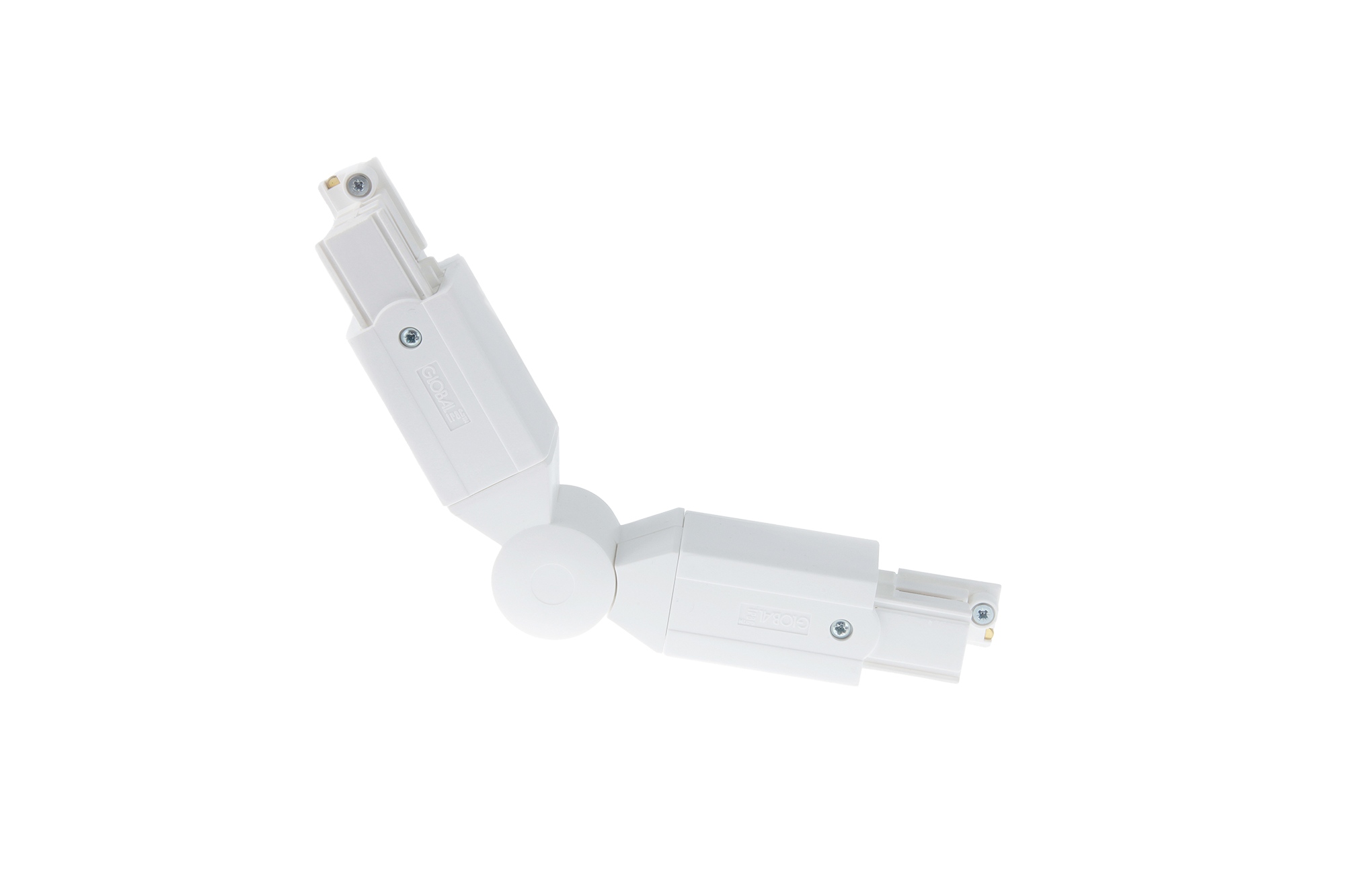

Adjustable right polarity. XTS 39 (-1, -2, -3)
Adjustable left polarity. XTS 40 (-1, -2, -3)
Mounting / Suspension
End Feed Stem Suspension Point
Includes bracket & cover. (Stem not included)
SP4E (-2, -3) Also available: specify
SP4L, SP4T, or SP4X for L, T, or X configurations
New Suspension Kits for XTS Track Family
Track Mounting Clip for M6 and 1/4" - 20 UNC Rod
Recessed T Grid Clip SKBX 12 (-2, -3)
Standard T Grid Clip SKBT 12 (-2, -3)
Standard Track Clip SKB 12 (-1, -2, -3)
Standard Track Clip SKB 10 (-1, -2, -3)
