PULSE Lighting Track System

3 CIRCUIT
1 NEUTRAL

The Power Behind the Fixture.

Architectural grade | ISO 9001 quality | JIT availability | Open architecture - ready for your fixtures now

  • 0-10V / DALI
  • 3-cct / 1-neutral, 120V
  • Low profile, easy & flexible installation
  • Open architecture — ready for your fixtures now!

Global PULSE track by NORDIC ALUMINIUM provides a specification grade track platform for mounting high quality fixtures. The heavy duty extruded aluminum profile is ideal for demanding applications where numerous and/or heavy fixtures are needed. In addition to U.L., Nordic lighting track is approved in numerous countries around the world, a valuable feature for both domestic and international projects. Produced in an ISO 9001 registered manufacturing facility, the product has a long-standing reputation for arriving at the job site on time and defect free.

When the ultimate level of control is required, GLOBAL PULSE will be your selection. This track gives you the DALI 0-10V connection as well as your standard 120V connection for 3 circuit/ 1 neutral.Three circuits offer endless merchandising and ambiance creation opportunities. Certain fixtures can be dimmed or shut-off while others can be set to intensely illuminate objects. Attention can be drawn to certain products or exhibits, a desired effect can be created through multiple-circuit dimming, or all fixtures can be powered for maximum illumination. Maximum control and reduced energy costs make GLOBAL PULSE an excellent choice.

Global PULSE track is engineered to be durable, dependable, and simple-to-install lighting solution. The track’s extruded aluminum construction and continuously crimped conducter ensure mechanical strength and electrical reliability. The integral suspension rail and predrilled mounting holes of the track simplify installations.

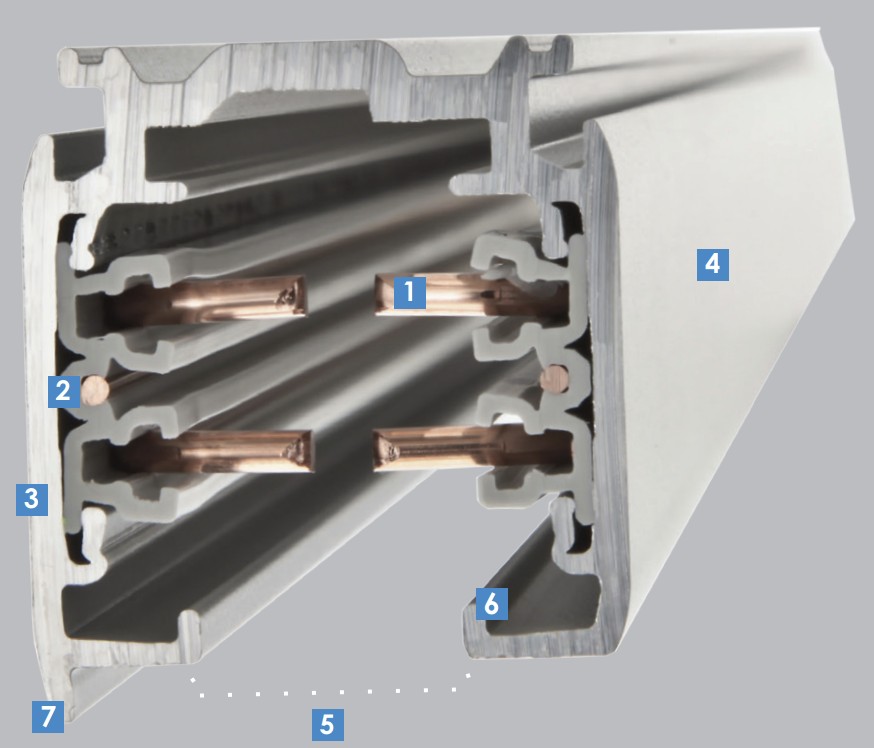

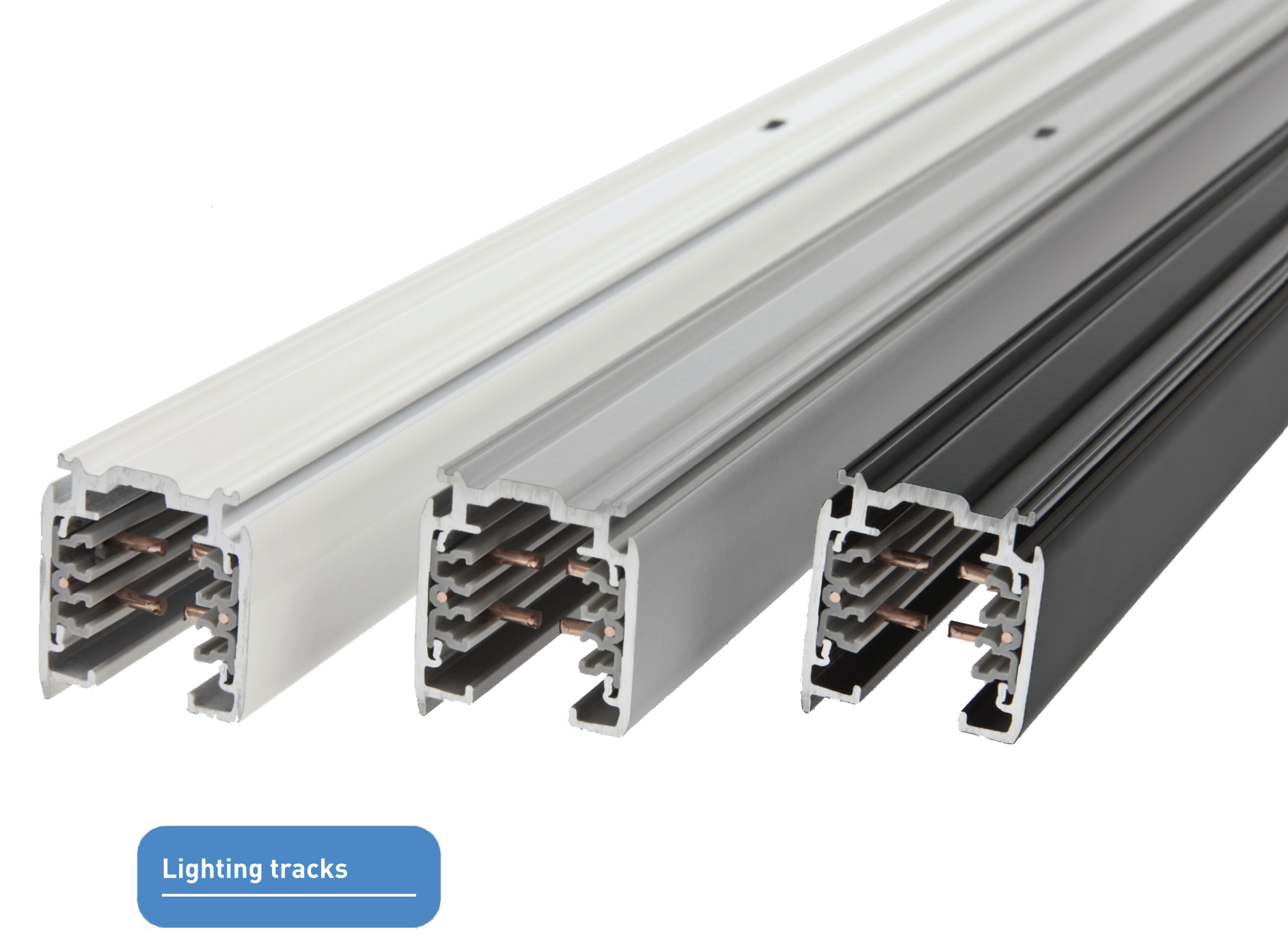

PULSE Track System

  1. Oversized Conductors
    • For higher operating safety and reduced overload potential
  2. Conductors
    • Used for 0-10V connection
  3. 3-Circuit Control
    • Allows energy savings: Certain lights can be dimmed or shut off while others illuminate products
    • Enhanced merchandising: Attention can be focused on select products
  4. Quality Construction
    • ISO 9001
    • Rigid aluminum profile
    • High quality powder coat finish

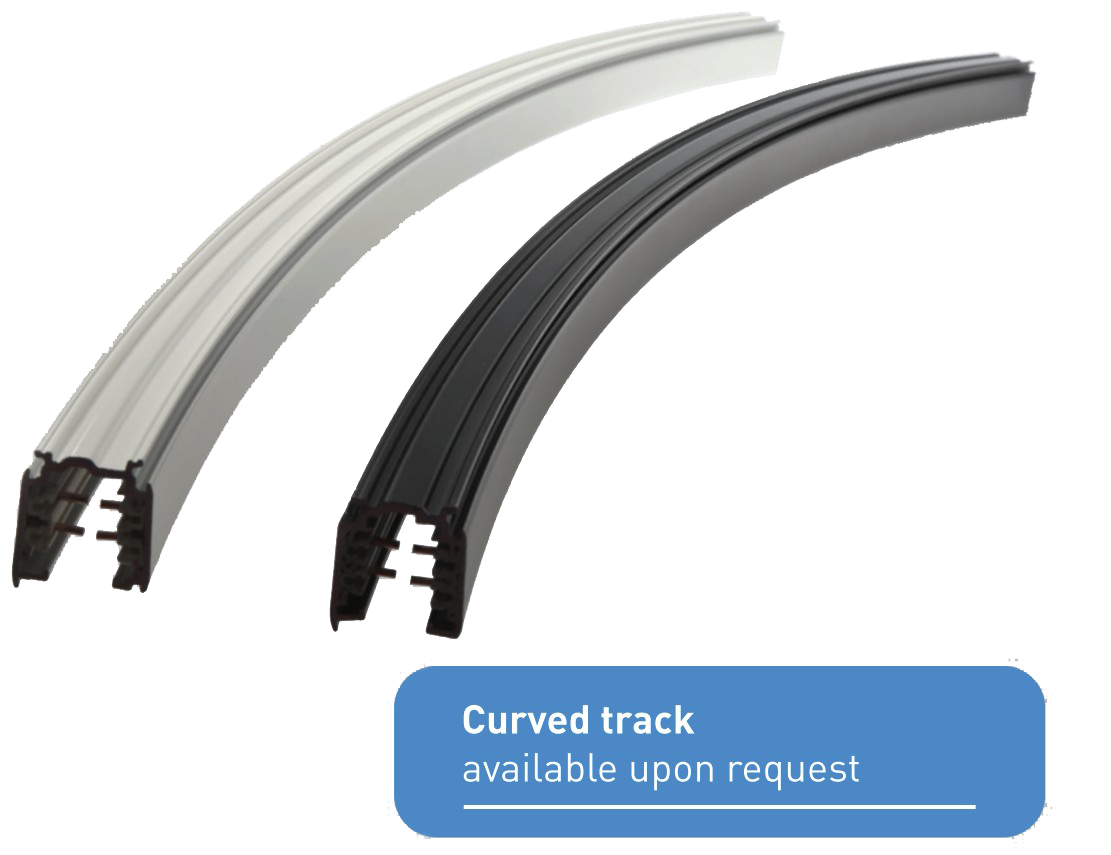

    • Curved track available
  5. Open Architecture
    • Widely available throughout the world, the XTSC Track System accomodates an extensive variety of fixtures without risk of obsolescence
  6. Separate Mechanical Suspension Points
    • Superior weight bearing capacity
    • Integrity of electrical contacts is maintained, preventing arcing and extending the life of fixtures and lamps
  7. Raised Ridge
    • This track is polarized and therefore direction sensitive, so care must be taken when selecting the connecting pieces
    • The raised ridge on one side of the track ensures proper polarity connection

PULSE Track Components

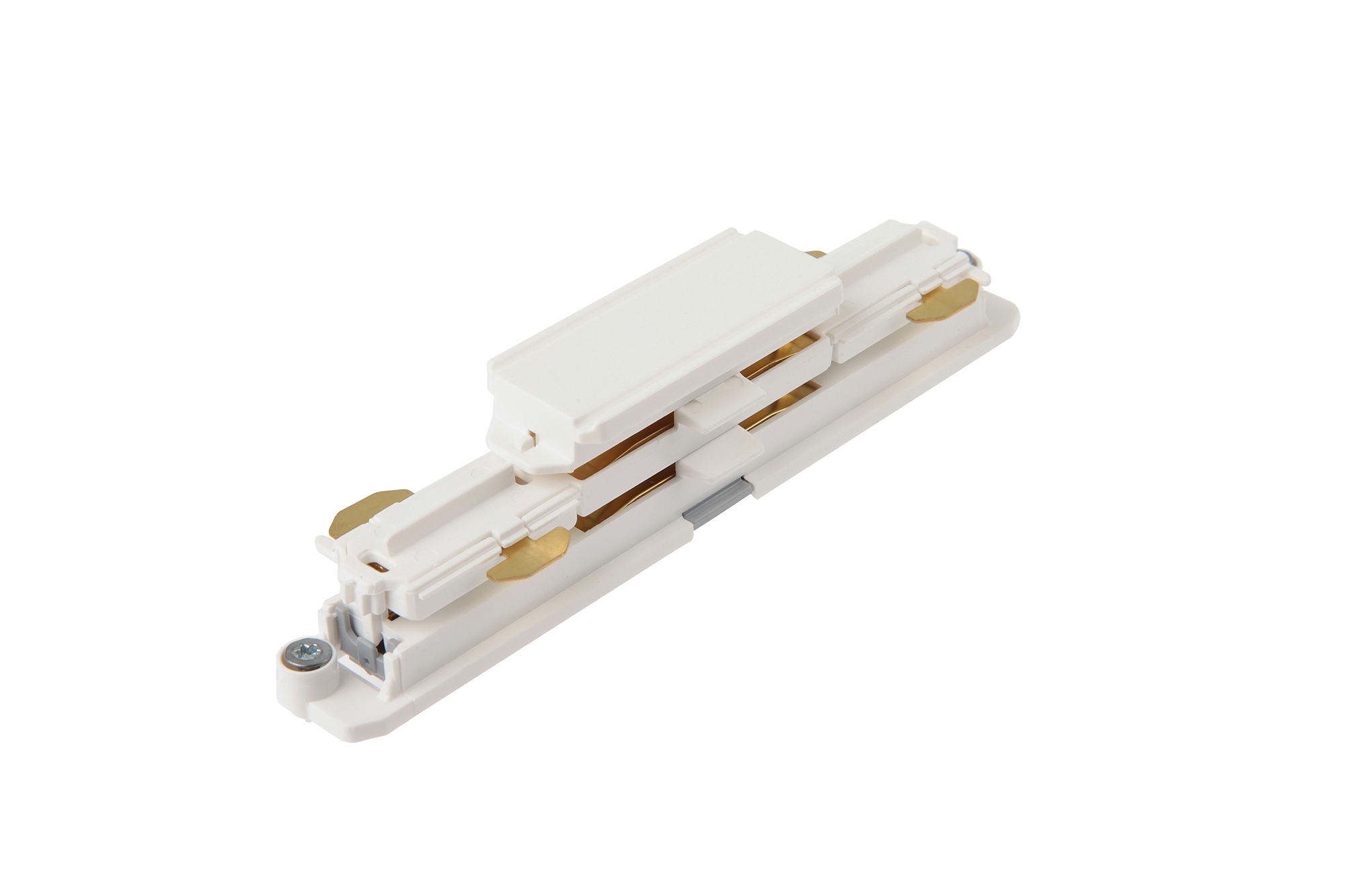

Coupler

XTSC 621 (-1, -2, -3)

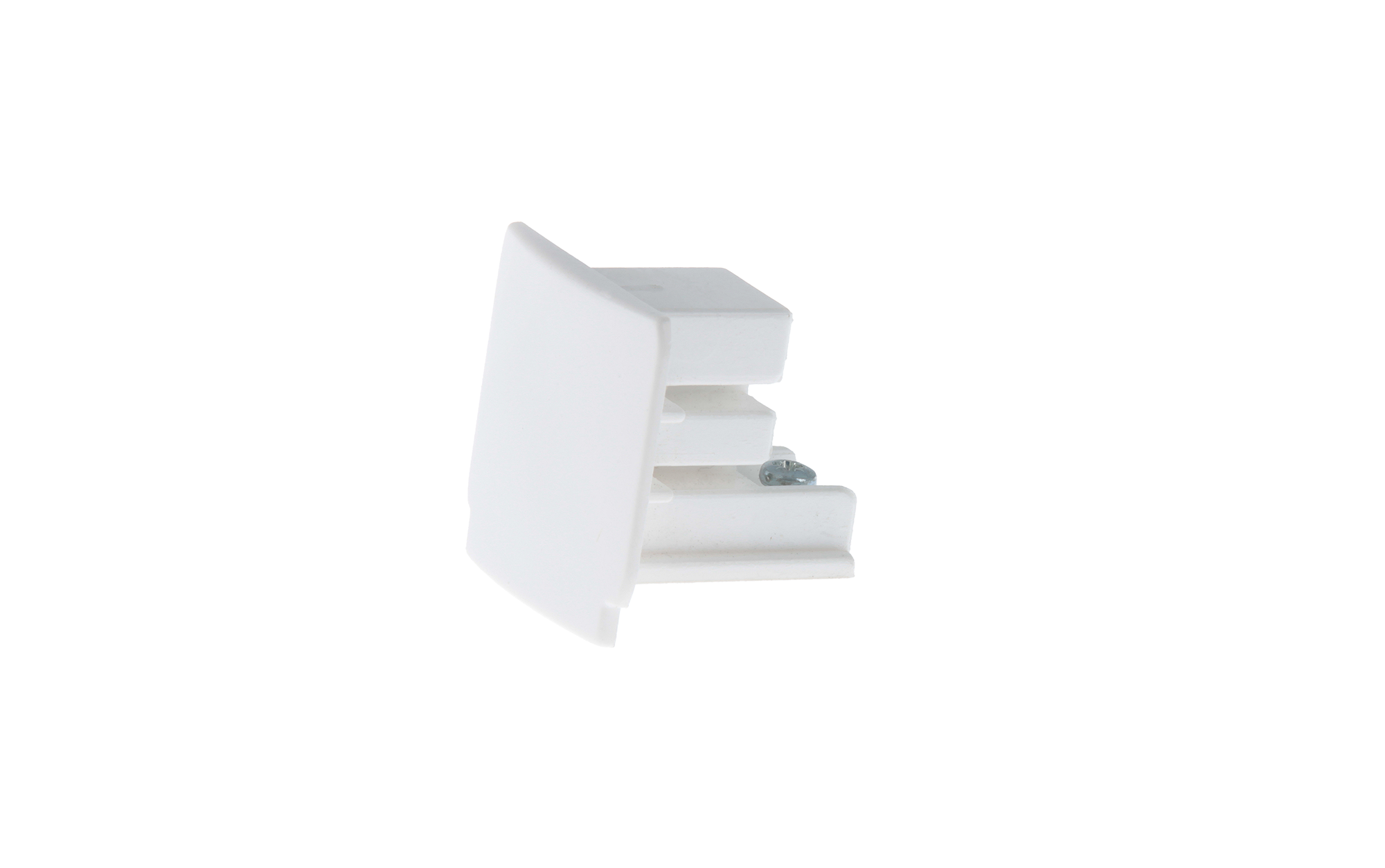

Dead Ends

Must be ordered seperately.
XTS 41 (-1, -2, -3)

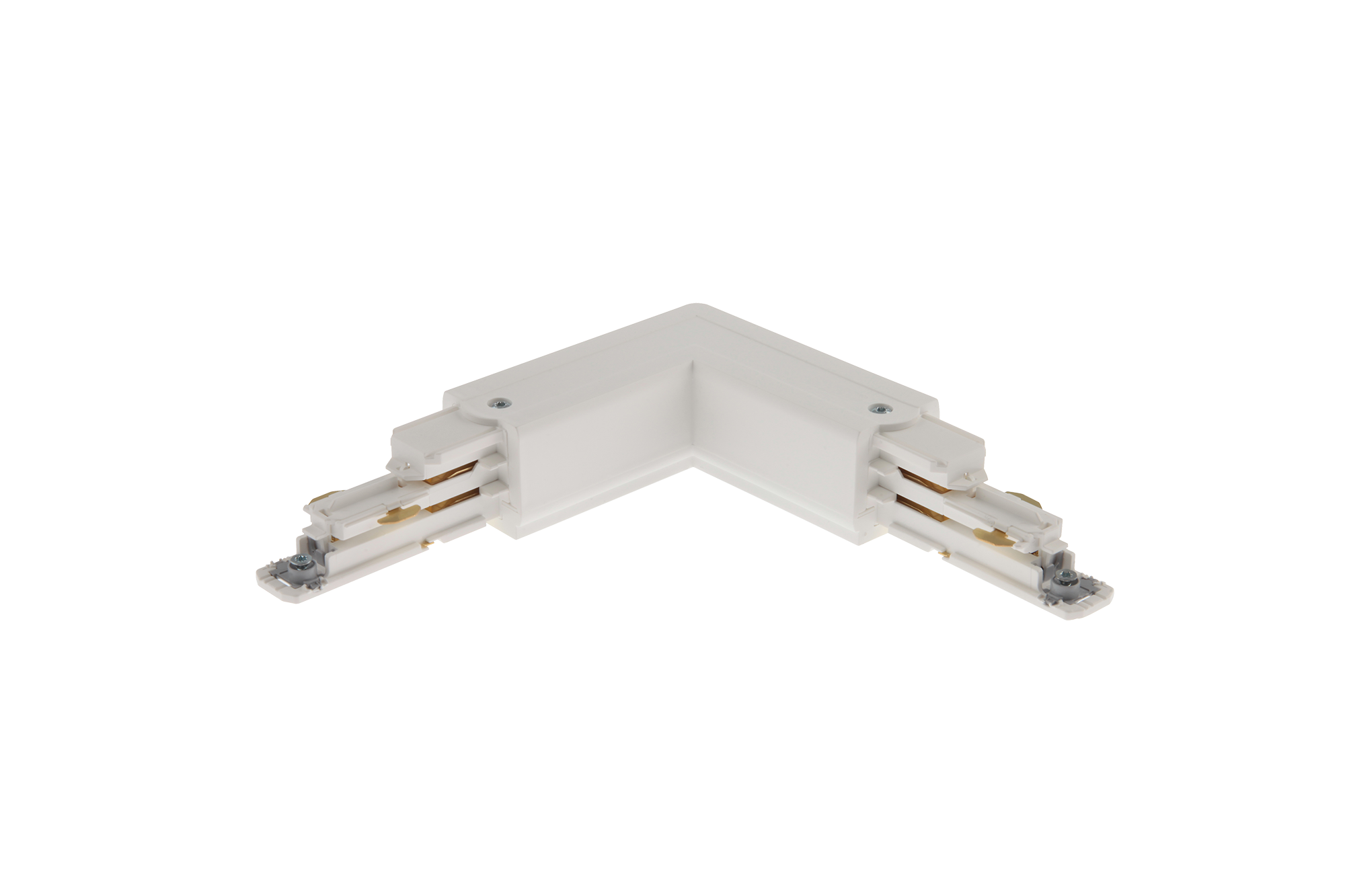

Feedable L-Connector

Inside polarity XTSC 634 (-1, -2, -3)
Outside polarity XTSC 635 (-1, -2, -3)

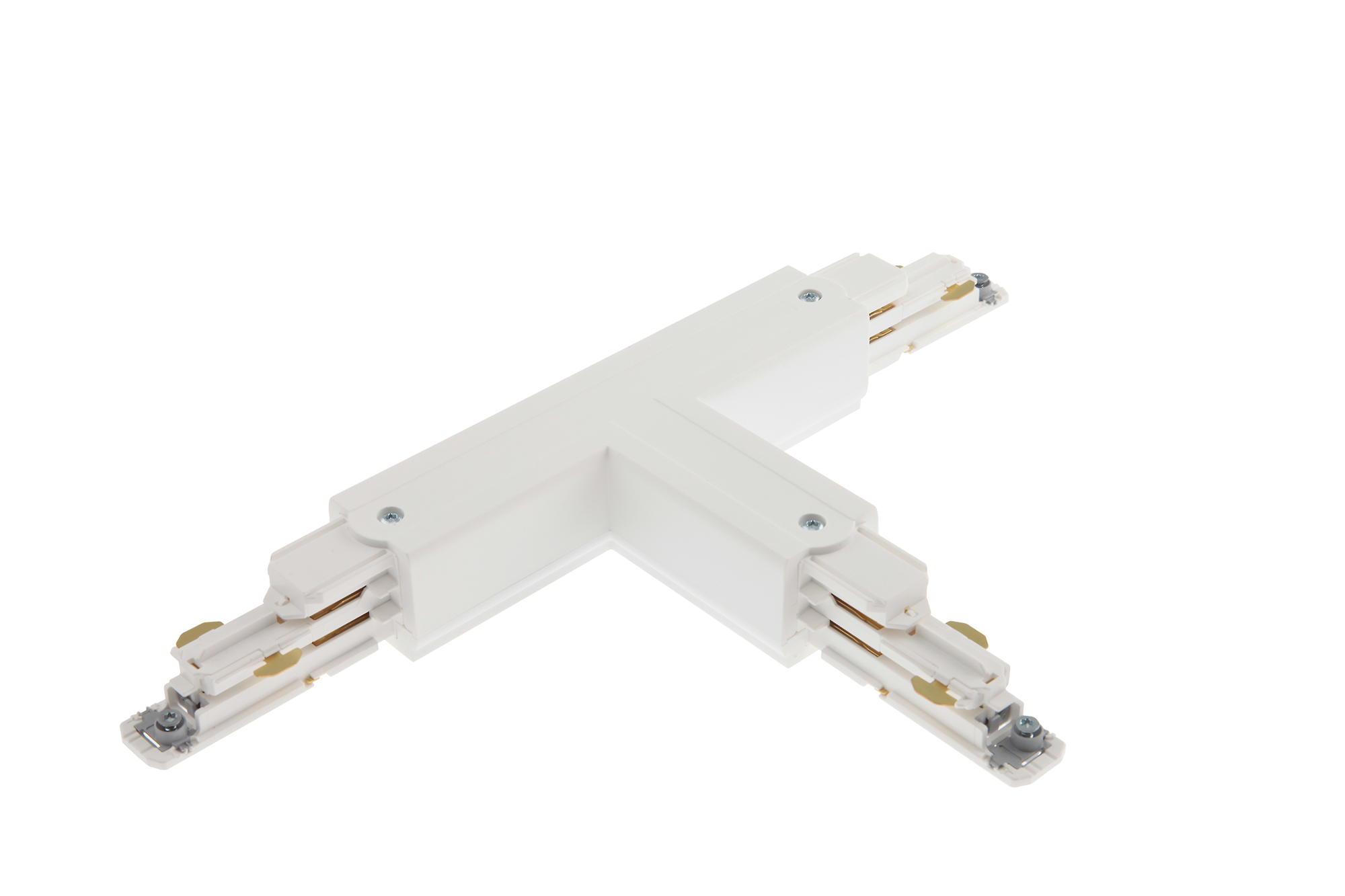

Feedable T-Connector

Outside left polarity XTSC 636 (-1, -2, -3)
Inside right polarity XTSC 637 (-1, -2, -3)
Outside right polarity XTSC 639 (-1, -2, -3)
Inside left polarity XTSC 640 (-1, -2, -3)

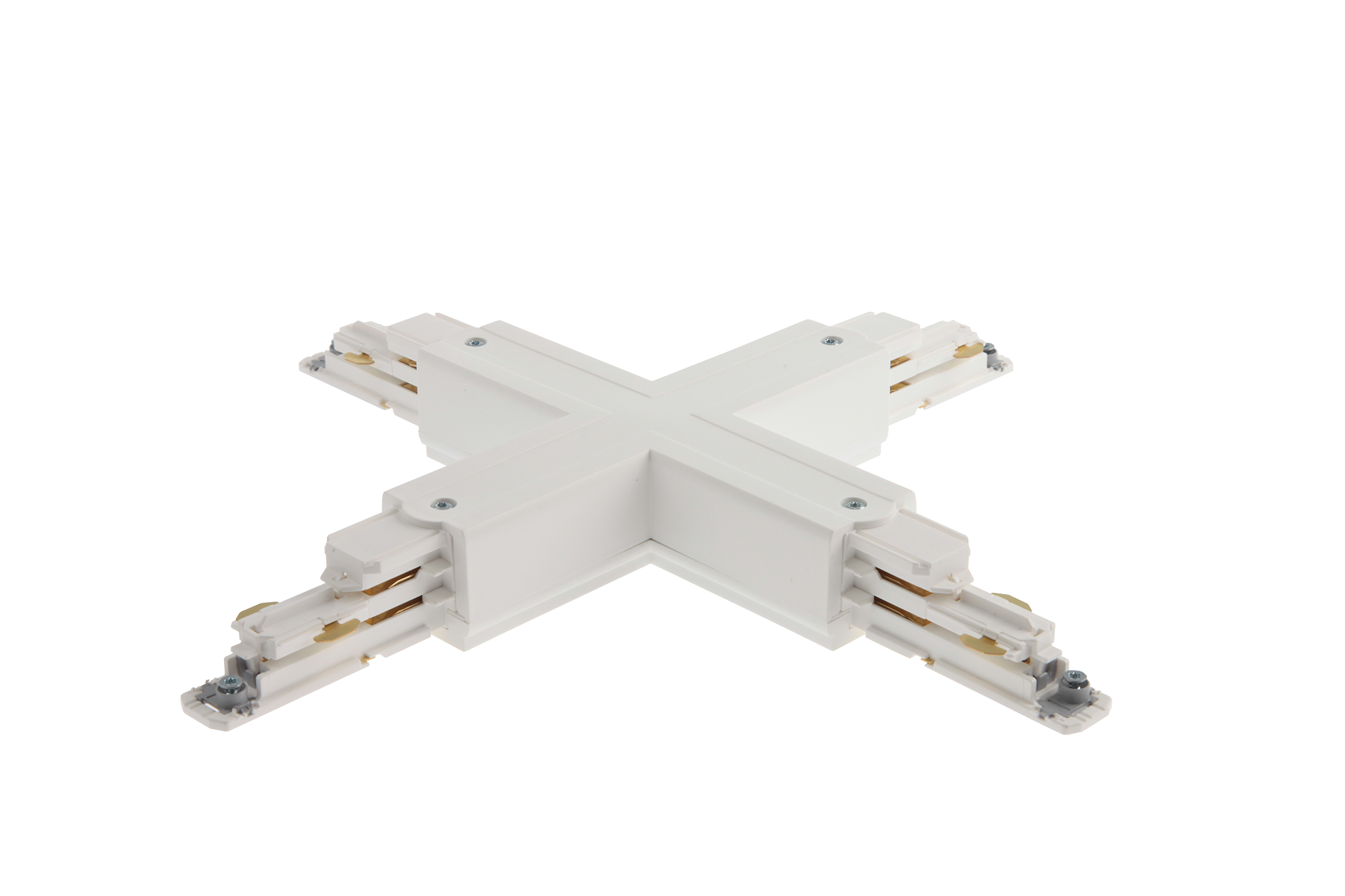

Feedable X-Connector

XTSC 638 (-1, -2, -3)

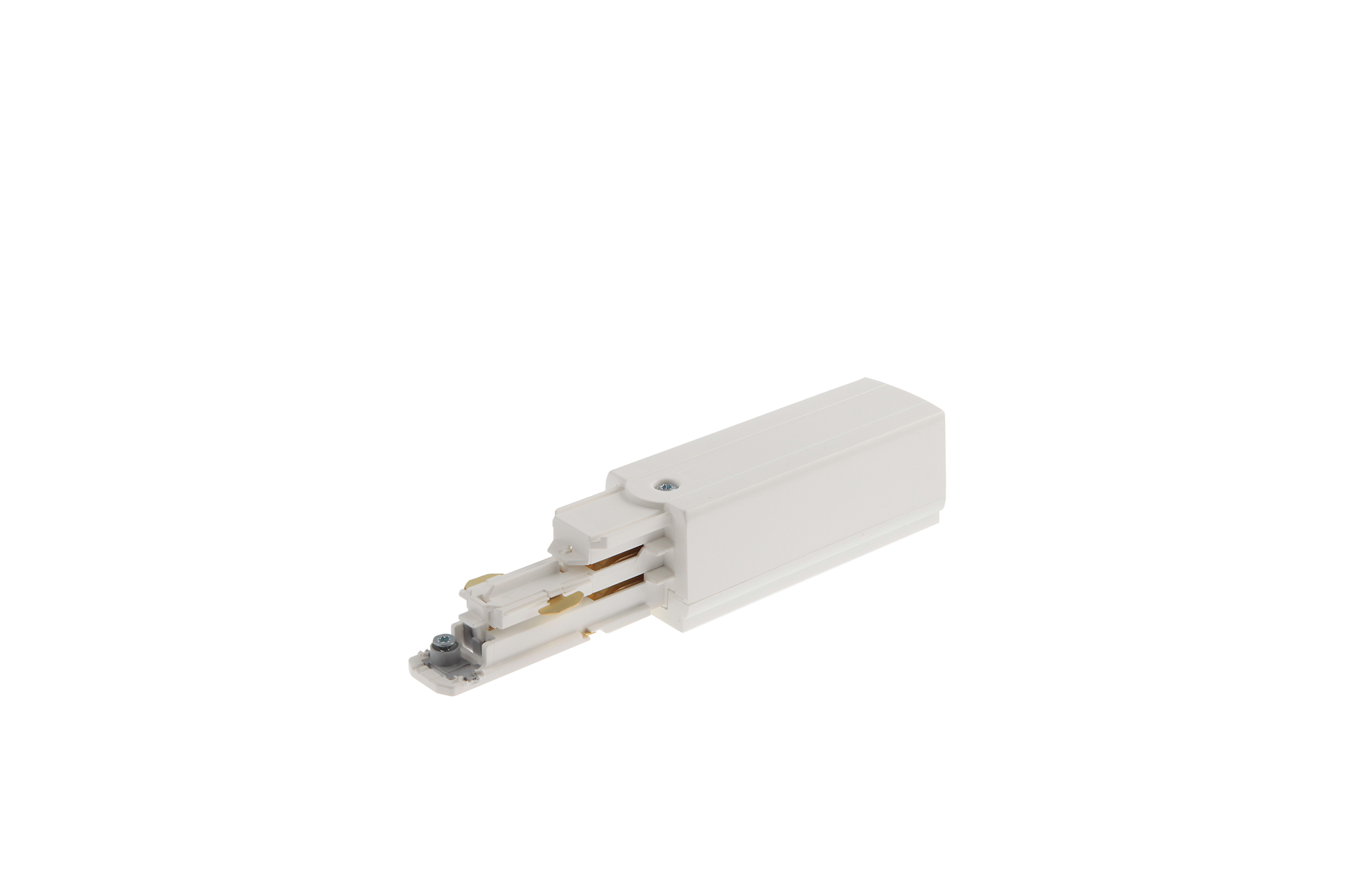

Live End Feed

XTSC 611 (-1, -2, -3)
Reverse Polarity XTSC 612 (-1, -2, -3)

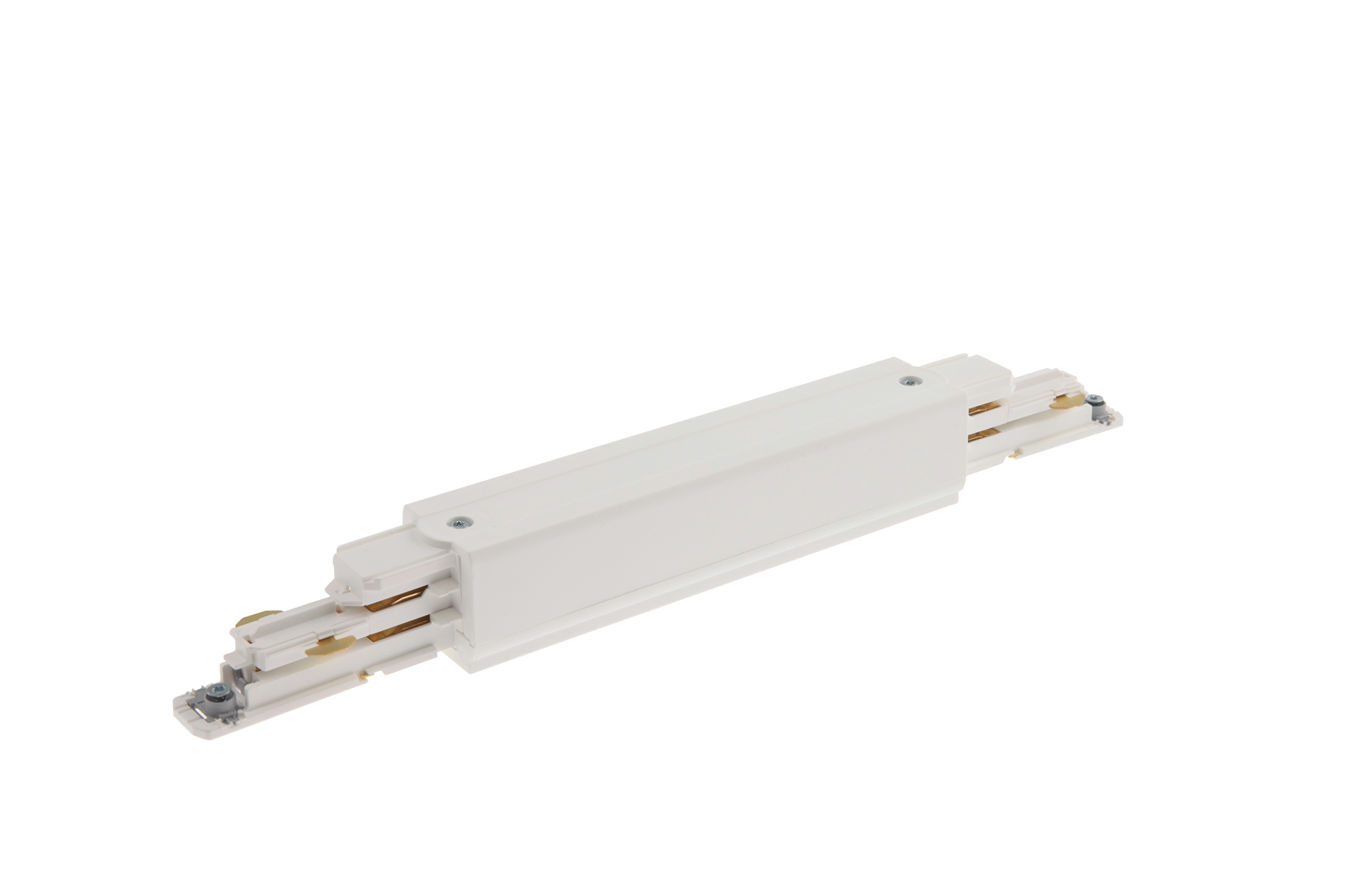

Live Middle Feed

XTSC 614 (-1, -2, -3)

Outlet Box Cover

For use with any eco connector.
GES 15 (-1, -2, -3)

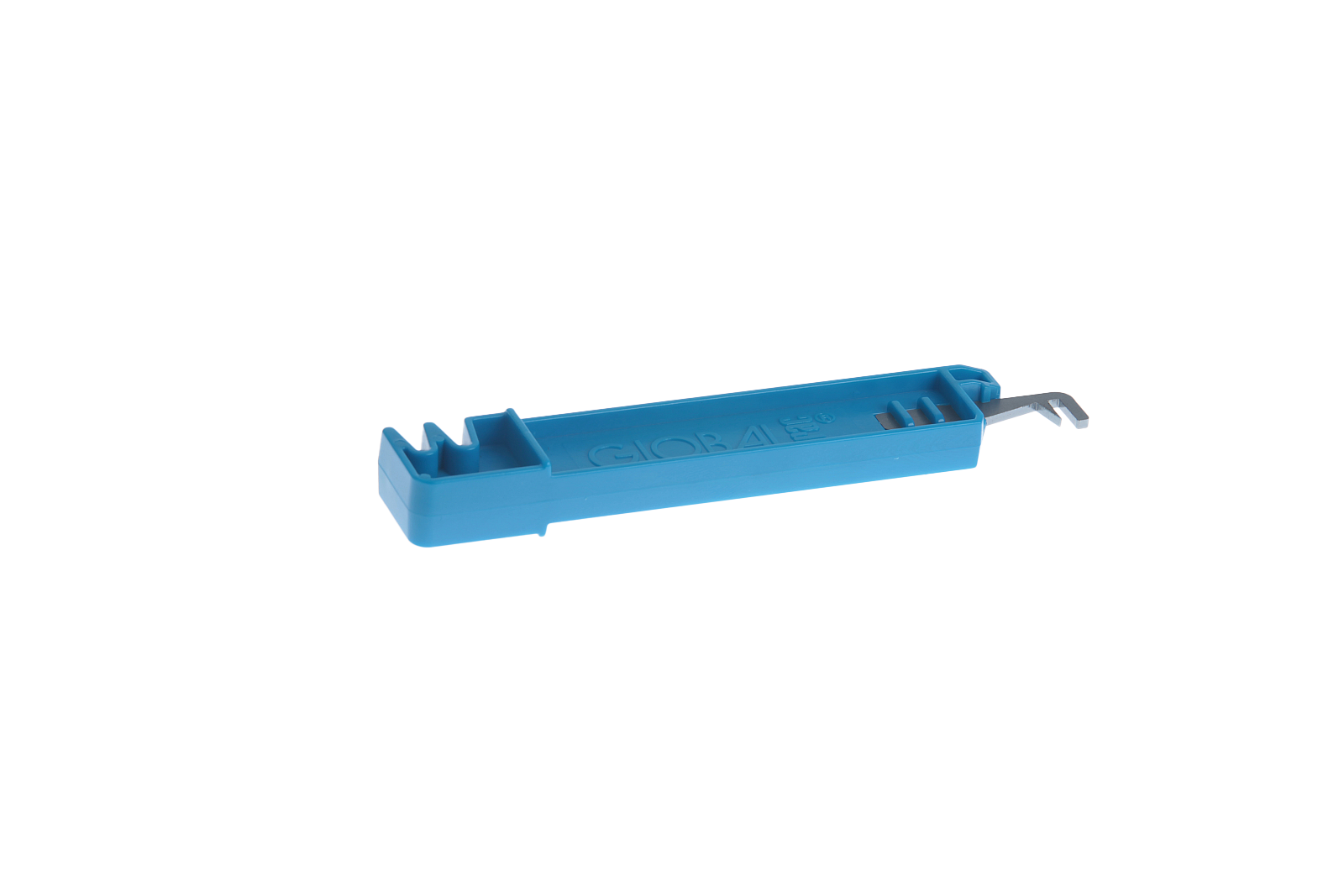

Track Length & Field Cutting Tool

All-in-one hand tool bends conductors to
manufacturer specifications and includes gauge
to verify correct length.
XTSV 12

Mounting / Suspension

Cable Mount

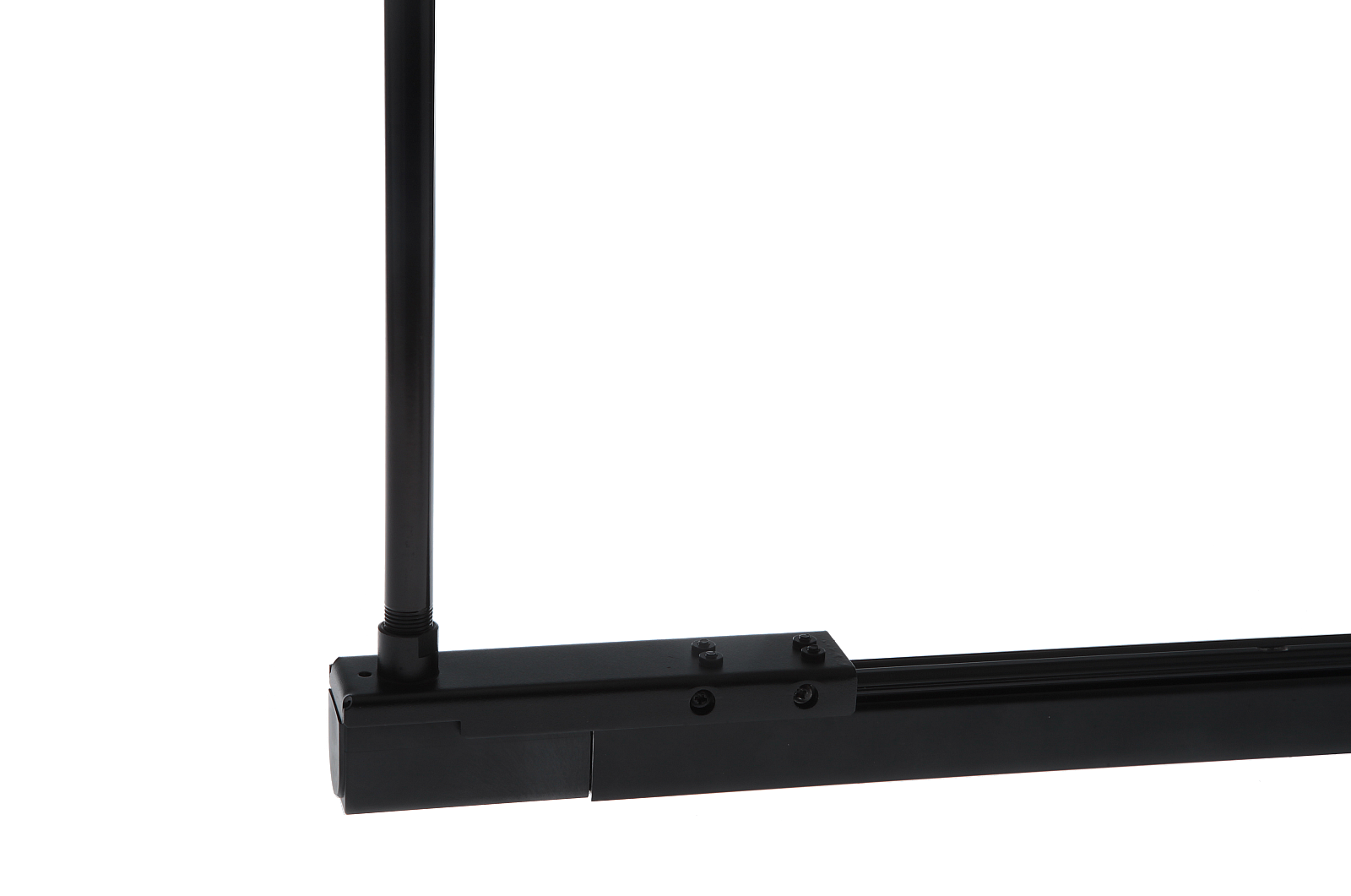

End Feed Stem Suspension Point

Includes bracket & cover. (Stem not included)
SP4E (-2, -3) Also available: specify
SP4L, SP4T, or SP4X for L, T, or X configurations

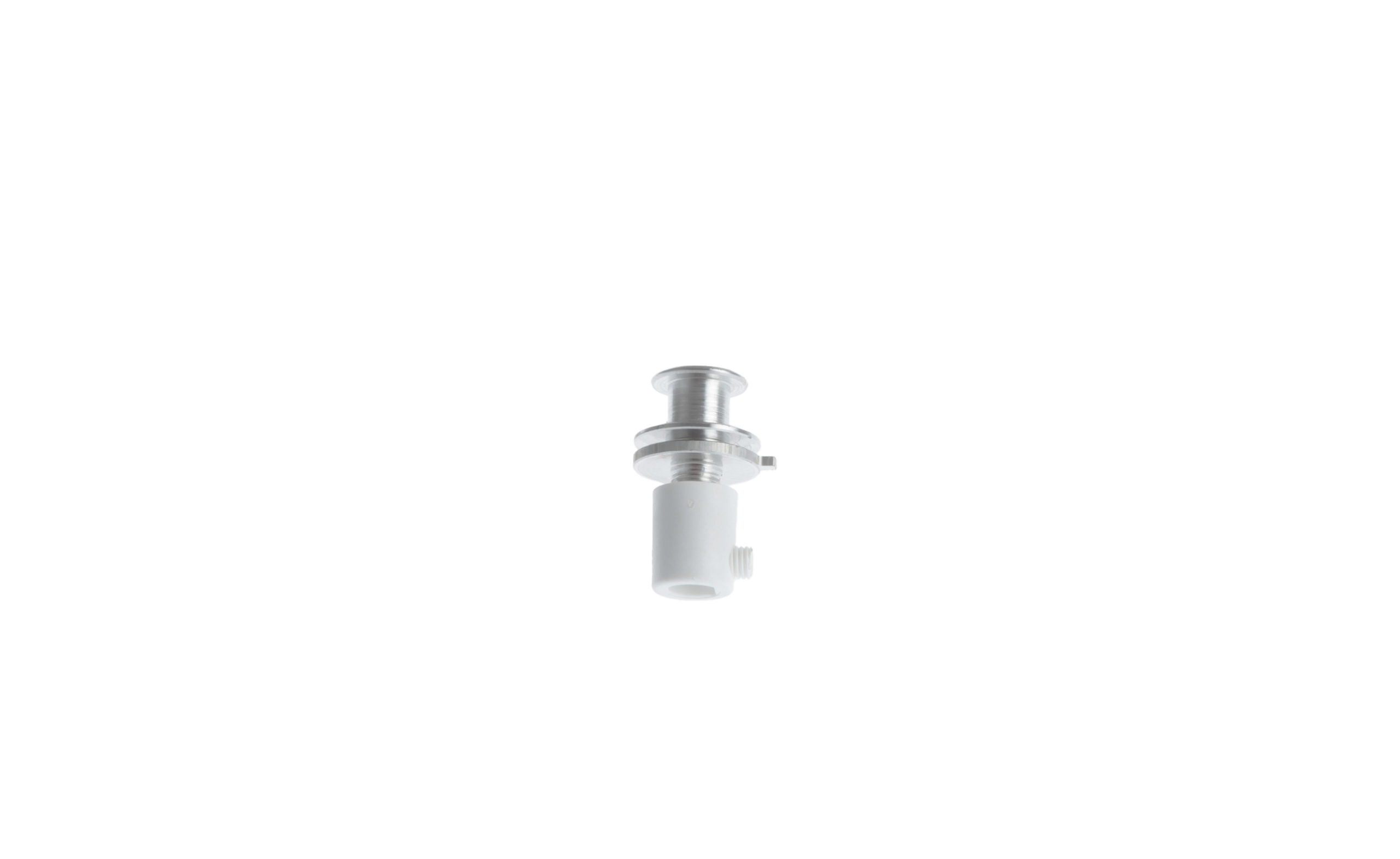

Nipple Rotating

XTSA 61/ 12-9 (12mm)
XTSA 57/ 8-9 (8mm)

Prewired Adapters

Both have 0-10V and 120V Control
Holds 10 lbs max GAC 69 (-1, -2, -3)
Holds 20 lbs max GAC 600 (-1, -2, -3)

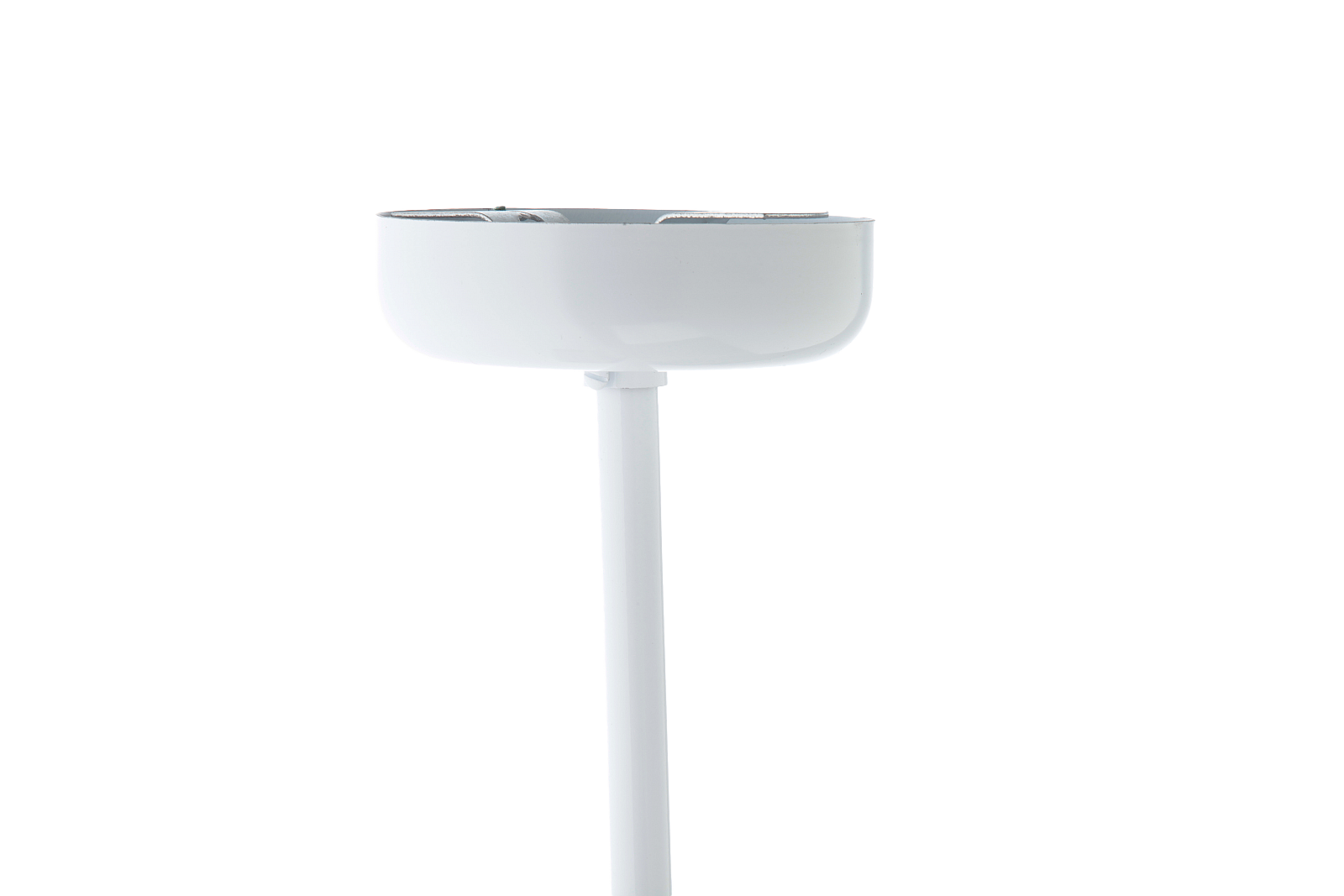

Stem Kits

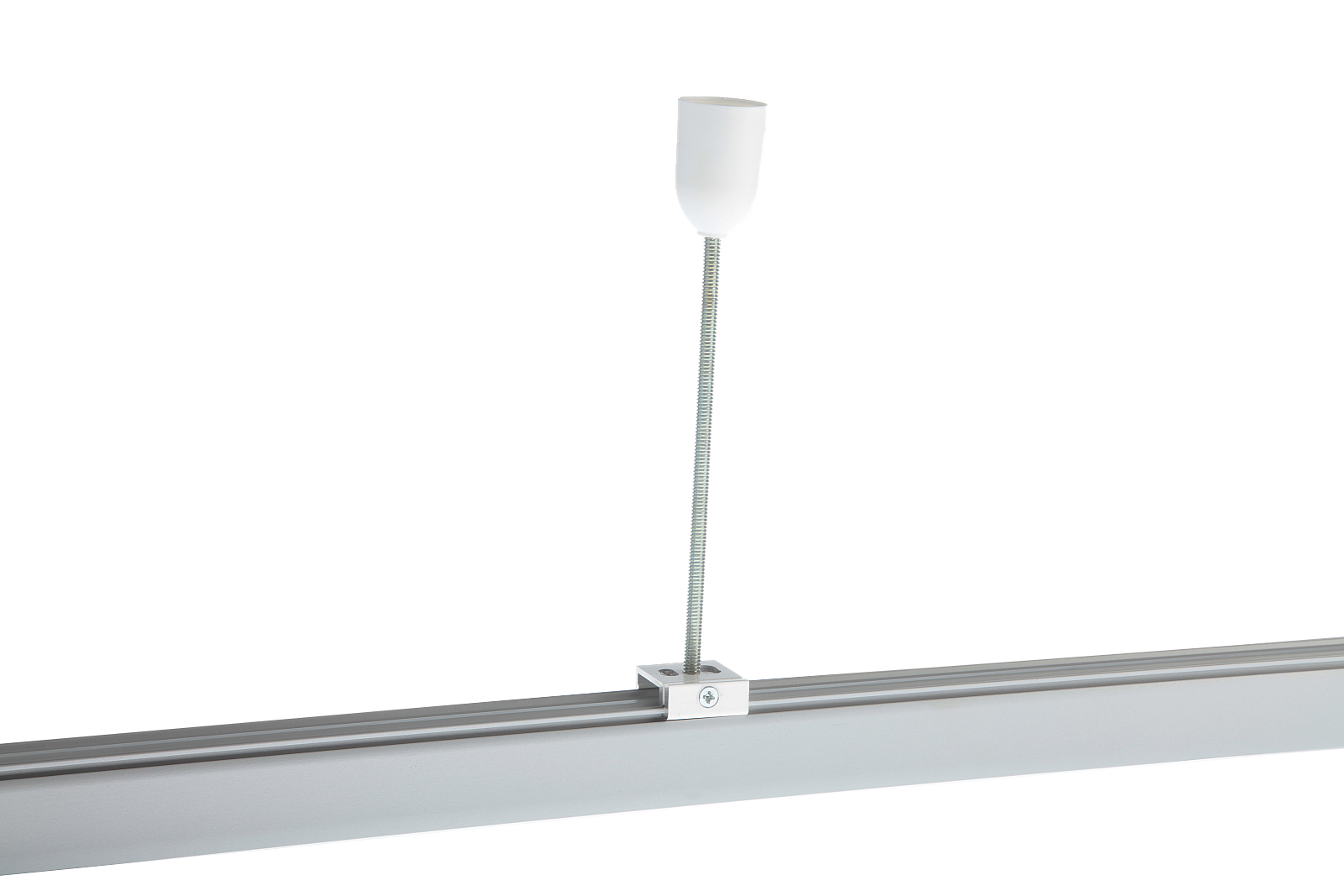

Threaded Rod Mount

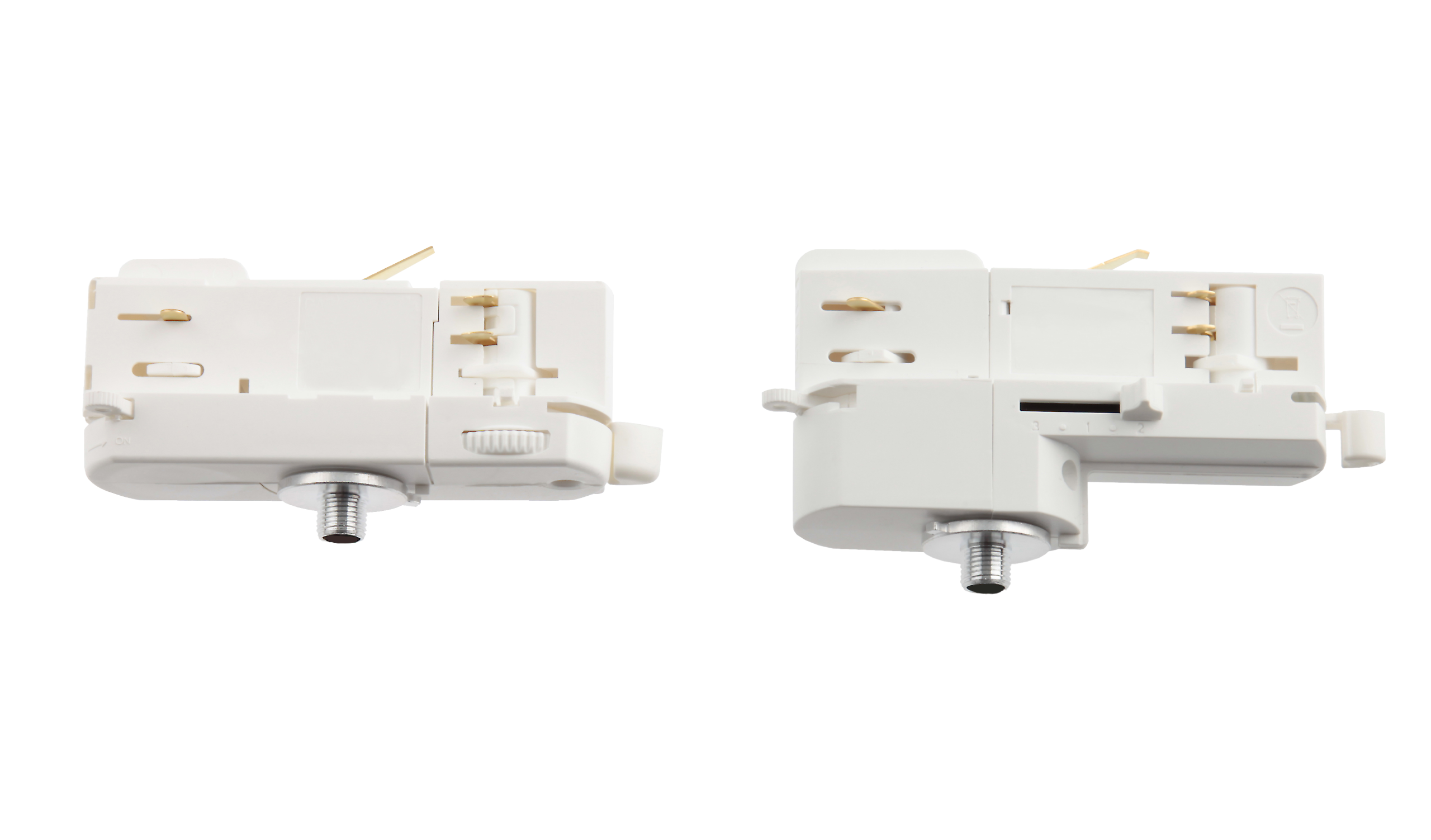

Unassembled Adapters

Both have 0-10V and 120V Control
Holds 10 lbs max GAC 69 (-1, -2, -3)
Holds 20 lbs max GAC 600 (-1, -2, -3)

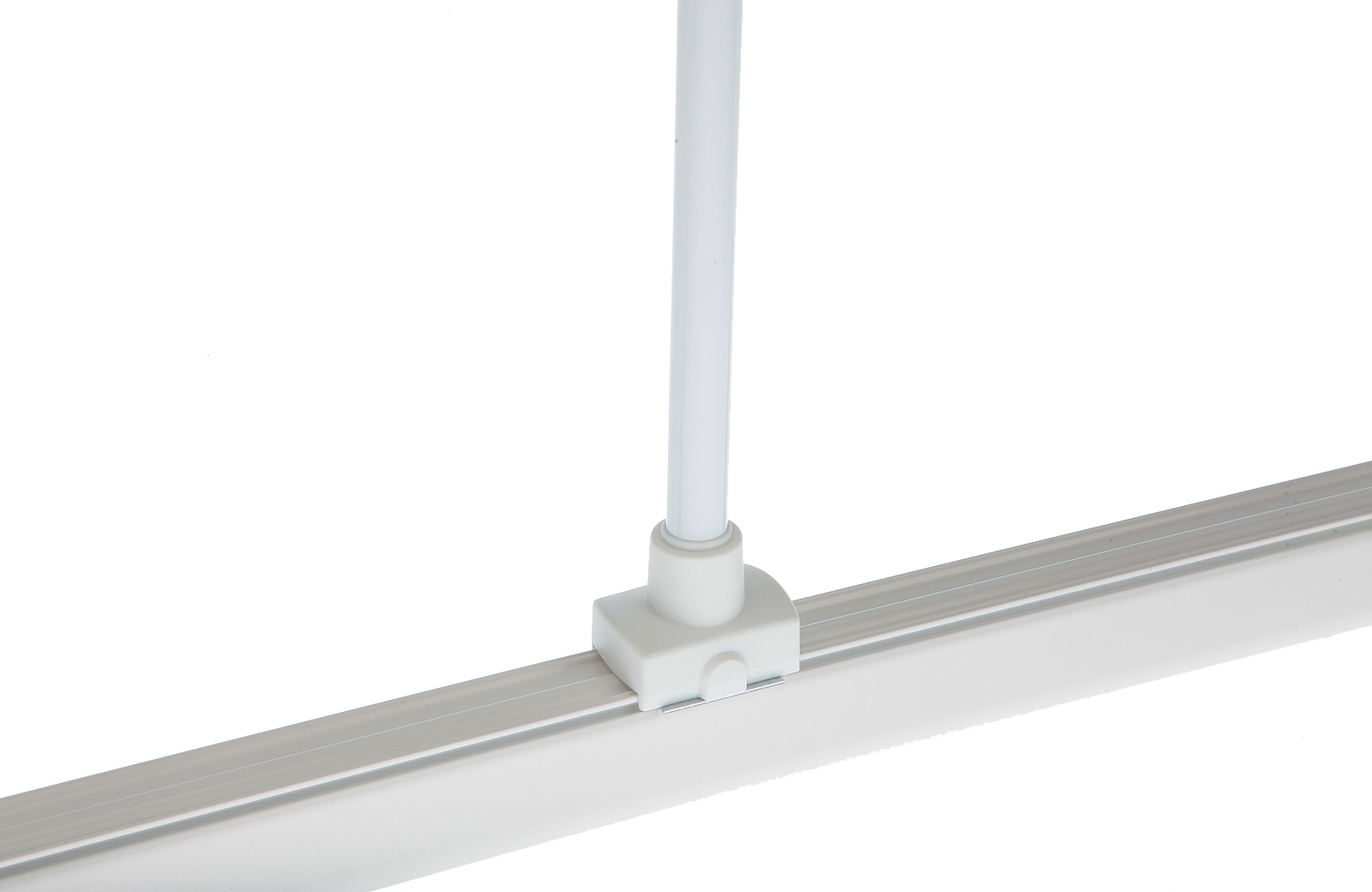

Universal Stem Suspension Point

Includes bracket & cover.
(Stem not included) SP4P (-2, -3)

New Suspension Kits for XTS Track Family

Extended Suspension Bracket

For looped aircraft cable
SKB 18 (-1, -2, -3)

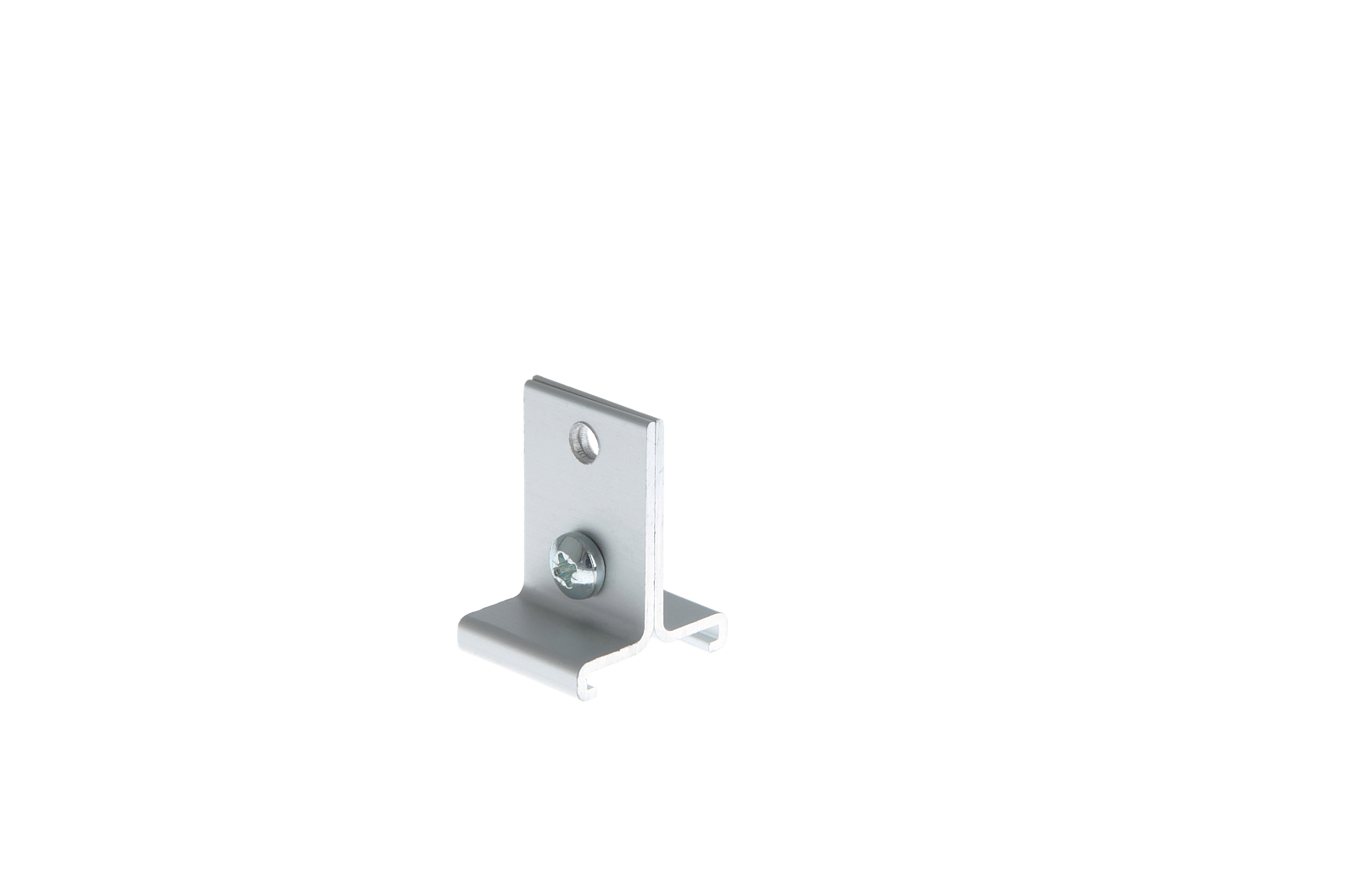

Suspension Bracket

For looped aircraft cable
SKB 16 (-1, -2, -3)

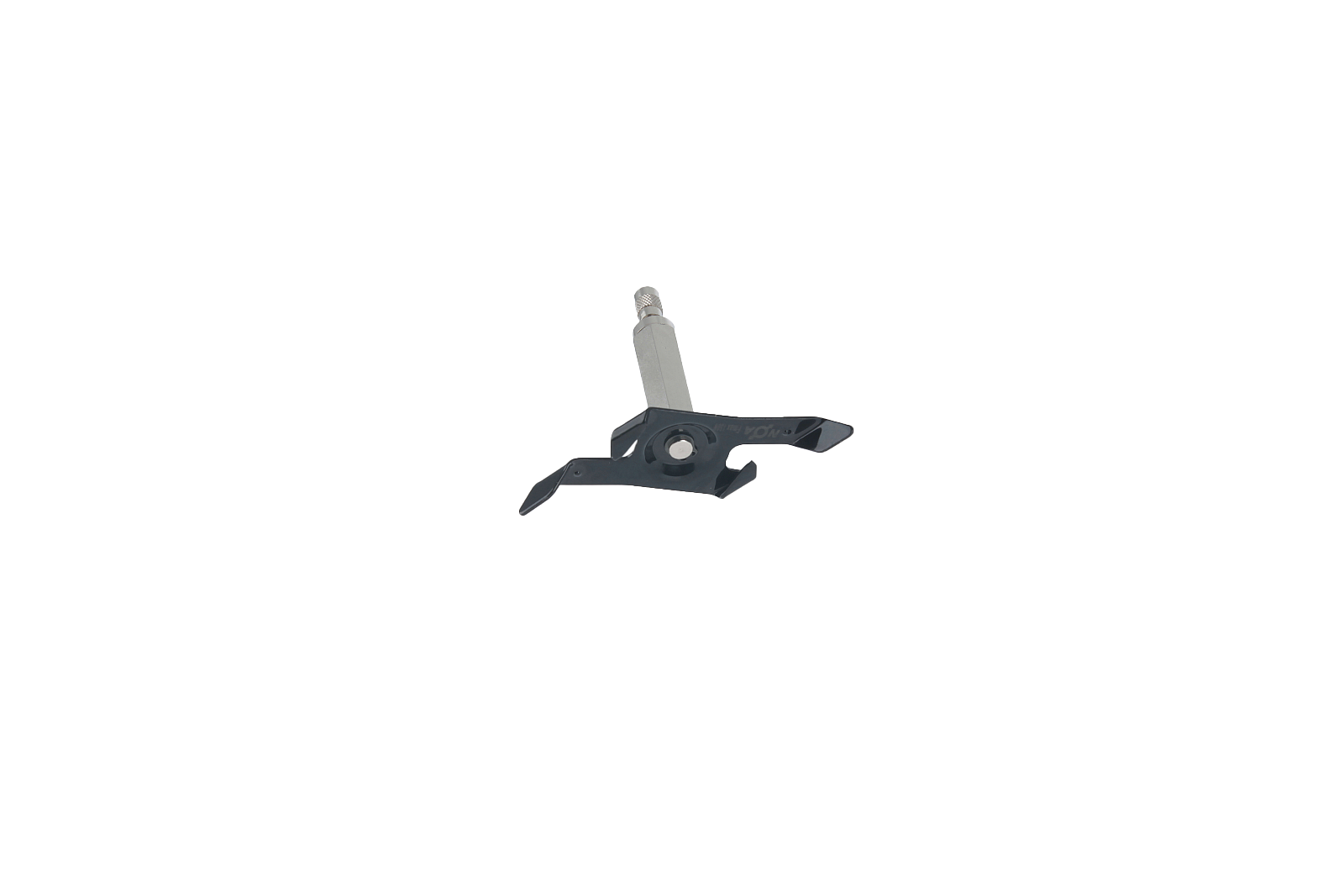

Track Mounting Clip for DIA 1.5mm Wire

SKB 11WL (-1, -2, -3)
Fmax 150N

Track Mounting Clip for M6 and 1/4" - 20 UNC Rod

Recessed T Grid Clip SKBX 12 (-2, -3)
Standard T Grid Clip SKBT 12 (-2, -3)
Standard Track Clip SKB 12 (-1, -2, -3)
Standard Track Clip SKB 10 (-1, -2, -3)

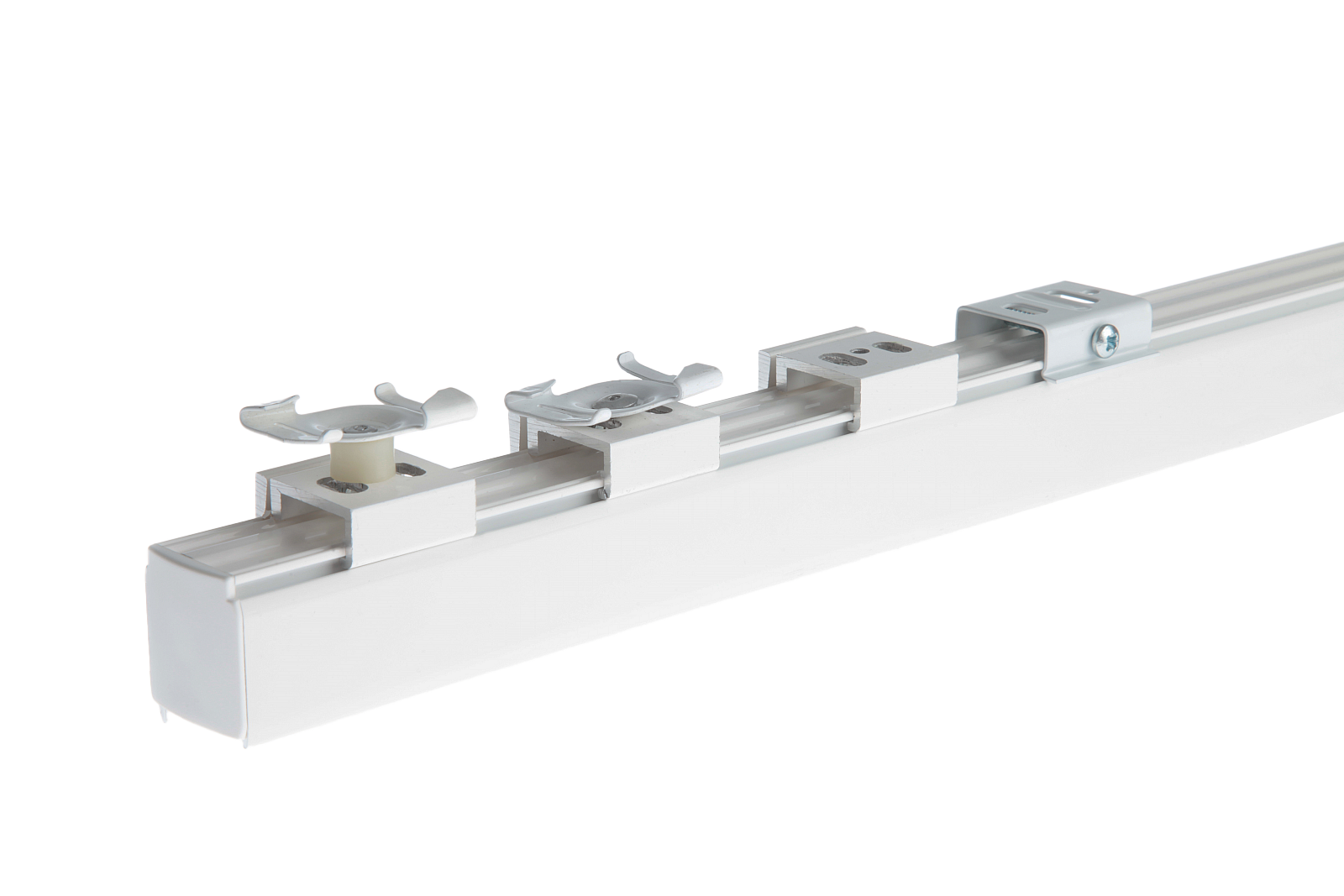

Track Mounting Clips

Recessed T Grid Clip SKBX 12 (-2, -3)
Standard T Grid Clip SKBT 12 (-2, -3)
Standard Track Clip SKB 12 (-1, -2, -3)
Standard Track Clip SKB 10 (-1, -2, -3)
